Diaphragms

SELECT THE RIGHT DIAPHRAGM FOR YOUR AODD PUMP

Selecting the right diaphragm for an air-operated double-diaphragm (AODD) pump is critical to the safety and efficiency of AODD pump operations. The right diaphragm will increase the reliability, performance and life of the pump, decreasing downtime and increasing profitability.

We offer diaphragms in multiple materials, including Neoprene, PTFE (Teflon), Nitrile (Buna-N), EPDM (ethylene propylene diene terpolymer) and Santoprene™. In addition to the multiple materials, Versamatic also provides different styles of diaphragms from domed and rugged to our groundbreaking FUSION™ with an integrated outer plate.

FUSION™

fusion-diaphragm Versamatic-fusion-diaphragm-side

FUSION integrated-plate diaphragms go beyond bonding PTFE and rubber. They also meld the outer diaphragm plate into the design. This exclusive bonding process results in diaphragms that are stronger and longer-lasting than traditional designs.

Benefits of FUSION Technology

  • Extended flex life
  • Improved performance
  • Greater displacement per cycle
  • Eliminated leak paths
  • Easy installation and maintenance
  • Smooth, sanitary design
  • Fewer parts, lower inventory costs
  • Available for use in the majority of Versamatic pumps (½" to 3")

ORDER THE FUSION DIAPHRAGM



Domed

dome-diaphragm Versamatic-dome-diaphragm-side

Versamatic’s domed diaphragms have a simple, smooth dome shape that delivers the flex across the entire face of the diaphragm, resulting in longer life. Because they’re so flexible, they can be installed and removed without the use of pry bars.

Benefits of Domed Technology

  • Available in all rubber and thermoplastic materials
  • Increased flex life over other diaphragm designs
  • Eliminates complex angles that cause internal stress and limited flexibility
  • Compatible with 1 ½", 2" and 3" pumps

ORDER THE DOMED DIAPHRAGM



Rugged

rugged-diaphragm Versamatic-rugged-diaphragm-side

Eliminate your worries about diaphragm pump failure with Versamatic’s rugged diaphragms. Made of high-quality, fabric-reinforced rubber, these diaphragms outperform and outlive standard diaphragms.

Benefits of Rugged Technology

  • Significantly reduces maintenance costs and downtime
  • Standard diaphragm for most Versamatic pumps requiring rubber or thermoplastic diaphragms
  • Available in Buna-N (Nitrile), Neoprene, EPDM (Nordel®), FKM (Viton®), Santoprene and Hytrel

ORDER THE RUGGED DIAPHRAGM



Two-Piece PTFE

PTFE-diaphragm Versamatic-two-piece-diaphragm-side

Since its introduction, this trusted diaphragm has a classic, reliable design providing chemical resistance and proven performance.

Benefits of Two-Piece Design

  • Can be used universally in all non-abrasive applications
  • Value option for chemical resistance and performance
  • Available in ½", 1", 1 ½" and 3" diaphragms

ORDER THE TWO-PIECE PTFE DIAPHRAGM



I’m Interested

We’re here to make pumping easy. Our experts are available to help you find the right parts and accessories for your project. Complete the form below and one of our experts will be in touch shortly.

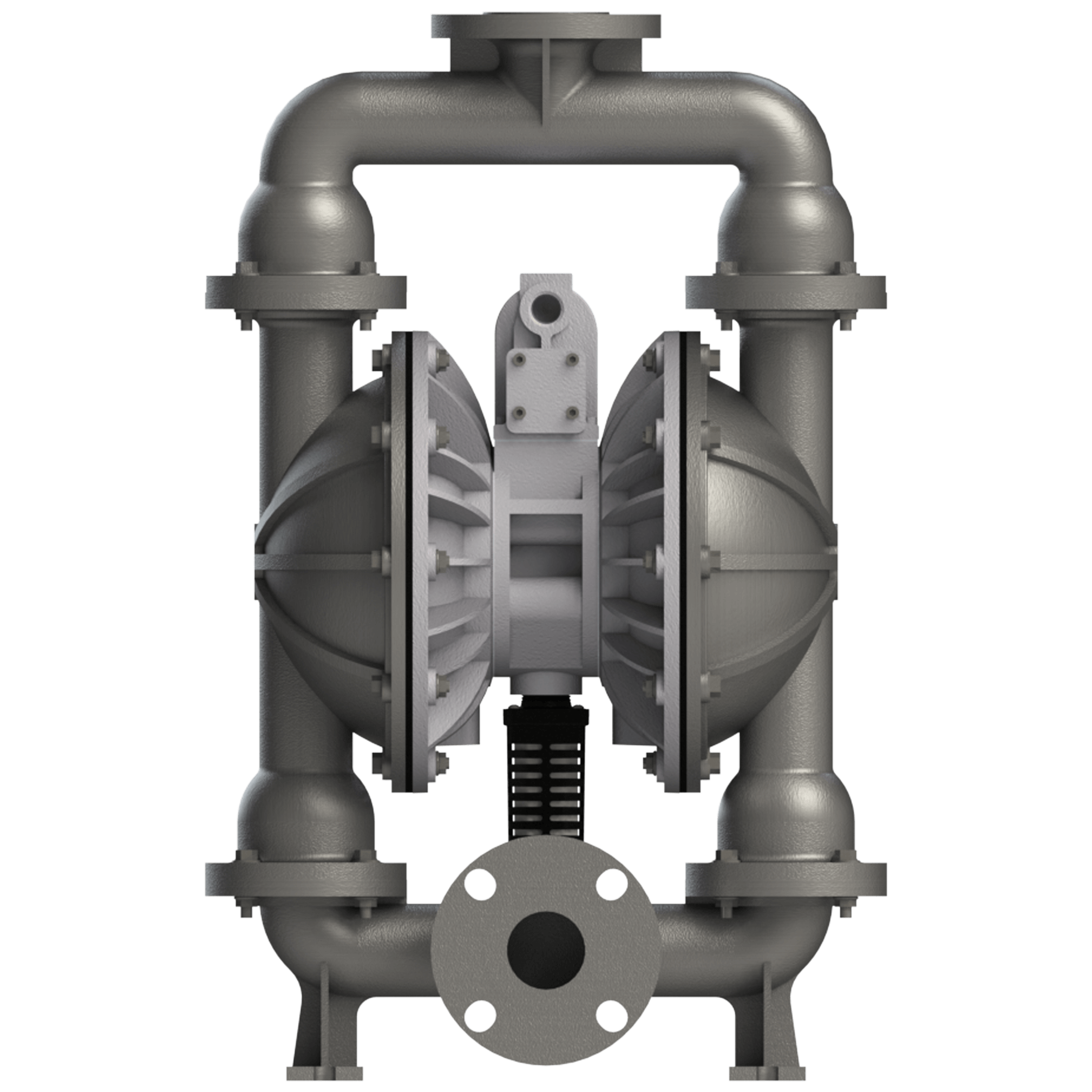

3" (76MM) Aluminum Bolted

Versamatic's 3" bolted units utilize optimized flow-through casting designs, delivering high flow rates and excellent solids handling, meeting your rapid fluid transfer needs quickly and reliably.

View Pump

3-Aluminum-Bolted
