⅜” (10mm) Bolted Plastic AODD Pump

VIEW SPECIFICATIONS

VIEW PERFORMANCE CHART

READ LITERATURE

WATCH VIDEOS

Small yet powerful, Versamatic’s ⅜" (10mm) bolted plastic air-operated double-diaphragm (AODD) pump can pump up to 6.8 gpm (26 lpm). Featuring a patented air valve system, count on this AODD pump to provide non-stalling, non-icing, lube-free operation. The ⅜" pump can be mounted upright, sideways and even inverted to adapt to your application. The manifolds rotate 90⁰, so you can adjust your porting orientation.

Available in Polypropylene and Kynar® materials, this pump is:

Compact
Powerful
Adaptable
Versatile
Dependable
Repairable

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

PUMP RESOURCES

SPECIFICATIONS

Flow Rate
0-6.8 gpm (25.7 lpm)

Port Size
Suction: ⅜" NPT(BSP)
Discharge: ⅜" NPT(BSP)

Air Inlet
¼" NPT

Air Exhaust
¼" NPT

Suction Lift
Dry: 8'(2.44 m)

Max Solid Size (Diameter)
0.10" (2.25 mm)

Max Noise Level
78 dB(A)

Shipping Weight
Polypropylene: 3 lbs (1.40 kg)
Kynar: 4.5 lbs (2.04 kg)

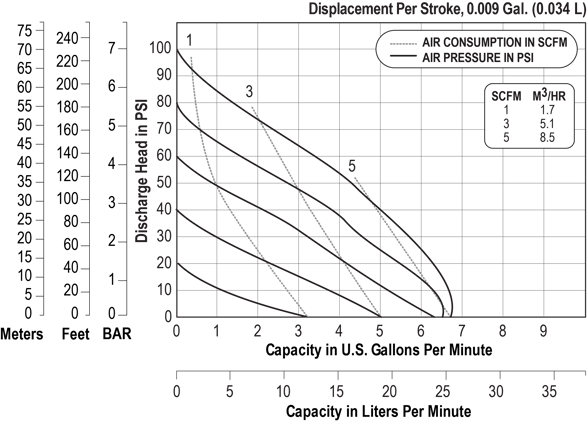

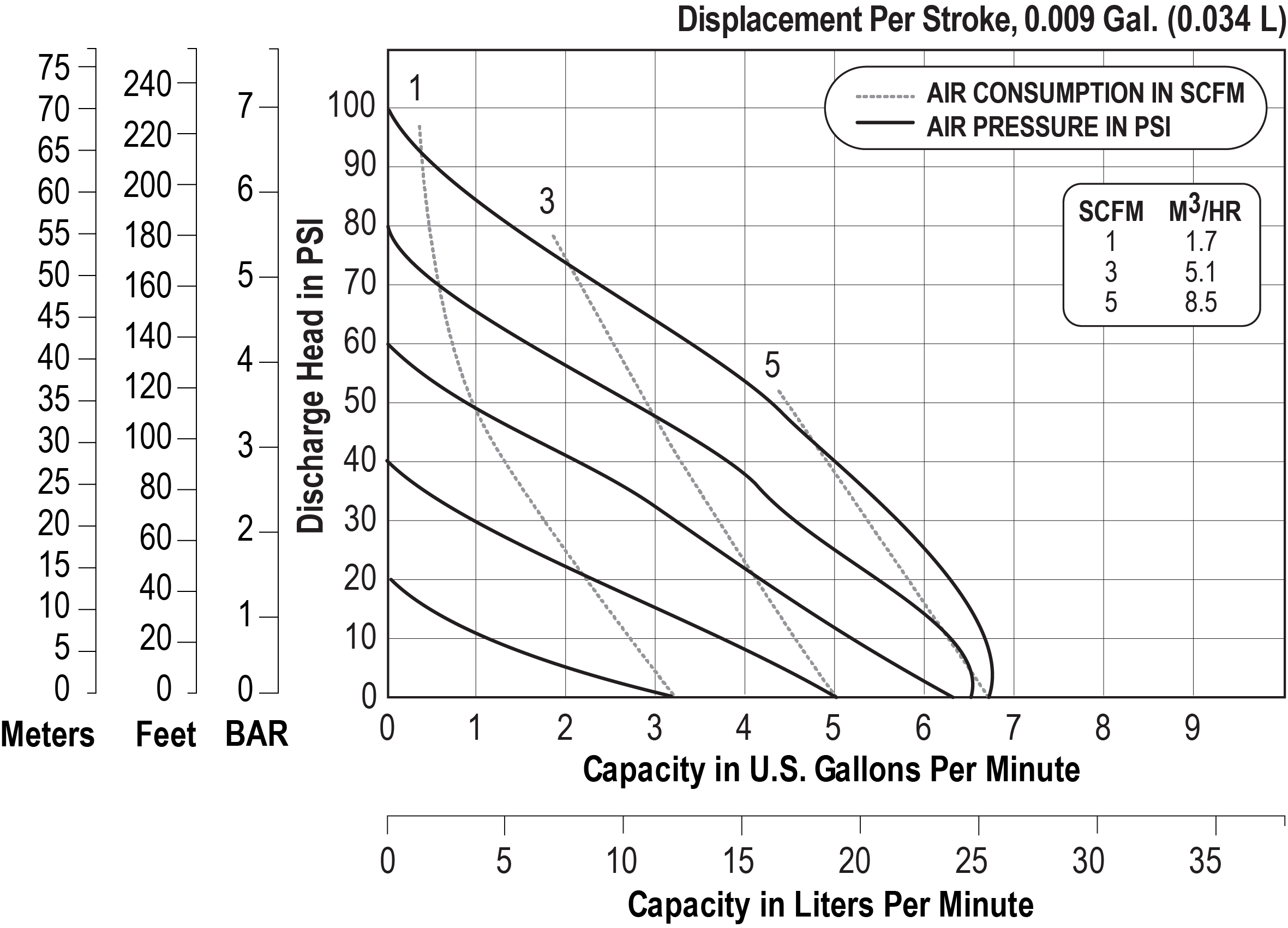

PERFORMANCE CHART

LITERATURE

VIDEOS

Versamatic: How AODD Pumps Work

REQUEST INFORMATION

AODD PUMP PARTS & ACCESSORIES

FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.
