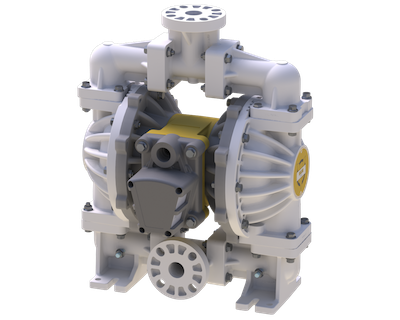

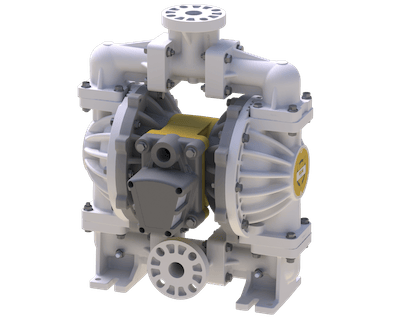

Effortless to maintain. Flexible by design. Built robustly for reliable performance. Versamatic’s Valor AODD pump, patent pending.

This new 1” pump with an innovative center section makes conquering pumping challenges easier than ever. Ideal for pump users across a multitude of markets and appplications. Expect additional pump sizes to build out the Valor series with the same innovative features. Watch the video to see how.



EFFORTLESS TO MAINTAIN

Simplified, durable construction allows for easy maintenance and minimized downtime thanks to:

  • An easy-to-service combined main air valve and pilot valve.
  • Feature that provides increased stability during maintenance.
  • All wet side bolts being the same.
  • Torquing the plates and diaphragm together before assembling simplifies maintenance.
  • A five-minute average air side service time compared to 45 minutes or more for competitive AODD pumps.

FLEXIBLE BY DESIGN

Durable enough for most pumping applications and equipped with interchangeable components, these pumps give you options, such as:

  • End porting or center porting available.
  • ATEX-compliant materials available soon.
  • Dual-porting option available.
  • Feet that can be re-positioned to match the competition.

BUILT TO PERFORM

Improved stability, sustainability, safety, and flow rates make Valor the AODD pump you can always rely on due to the following robust features:

  • Highest GPM to SCFM ratio on the market.
  • Longer ball and diaphragm life than previous designs.
  • The greatest flow rate of any other 1" AODD pump.
  • Capable of 125psi operation.

Request more information or order your Valor today. And keep an eye out for Versamatic pumps in 1½”, 2”, and 3” sizes to incorporate the new modular center section soon.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • Adjustable to 0-63 gpm (238 lpm)
  • Port Size
  • Suction: 1” ANSI/DIN Flange
  • Discharge: 1” ANSI/DIN Flange
  • Air Inlet
  • 3/4” NPT
  • Air Exhaust
  • 1” NPT
  • Suction Lift
  • Dry: 19’(5.8 m)
  • Wet: 31’ (9.5 m)
  • Max Solid Size (Diameter)
  • 0.25” (6 mm)
  • Max Noise Level
  • 84 dB(A)
  • Shipping Weight
  • Polypropylene: 25 lbs. (11.3 kg)
  • PVDF: 42 lbs. (19 kg)
  • Conductive Poly: 28lbs (12.7 kg)

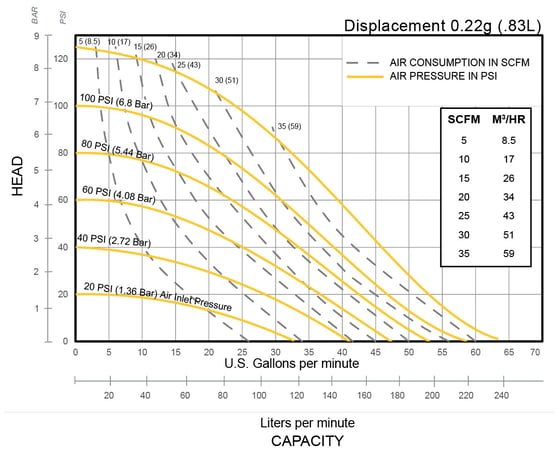

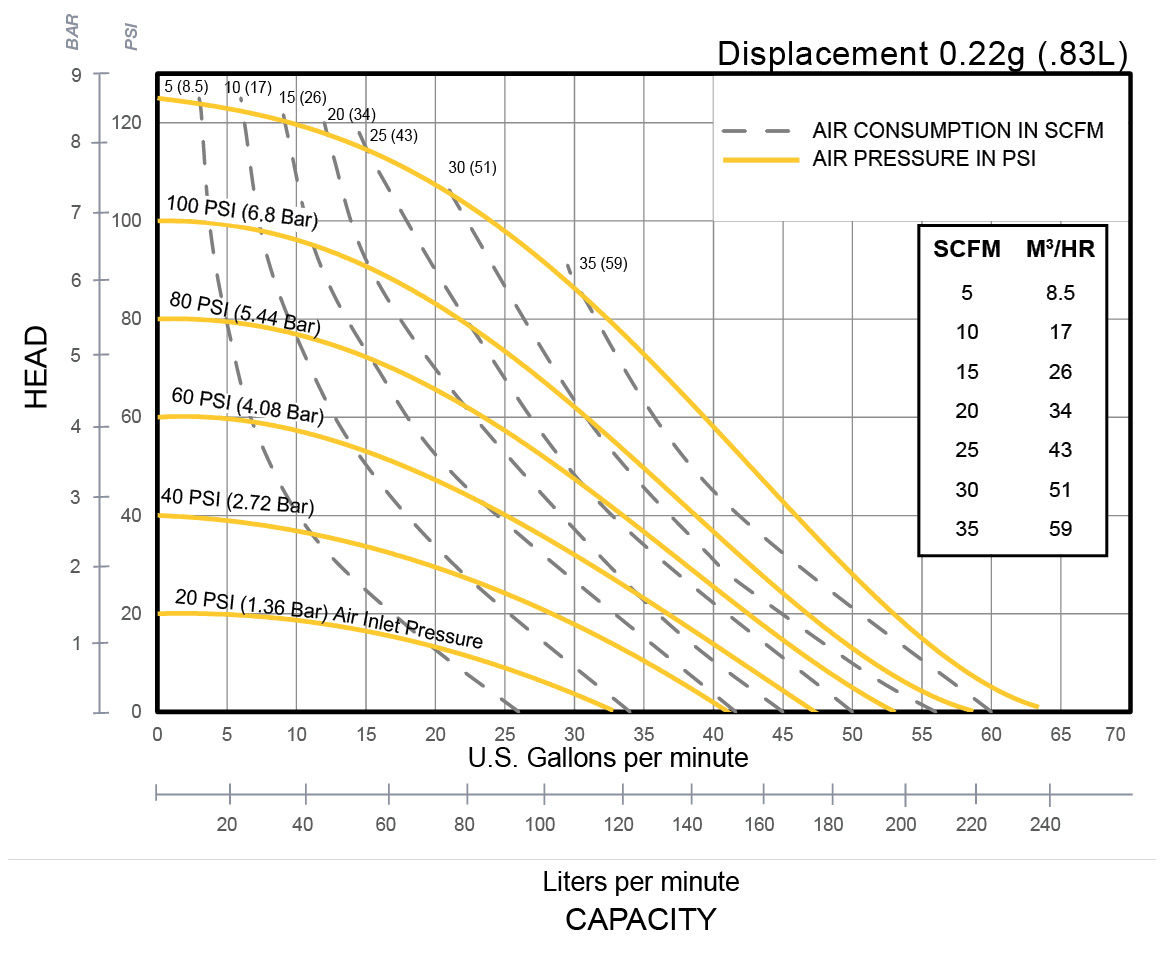

PERFORMANCE CHART
Valor performance chart
Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTERREGULATOR
FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

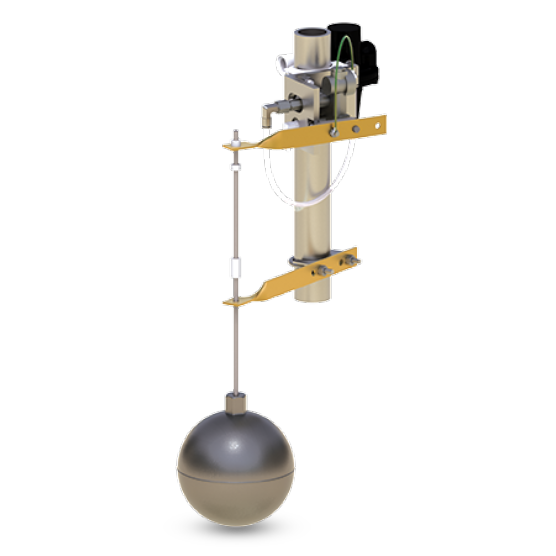

LIQUID-LEVEL CONTROL
LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

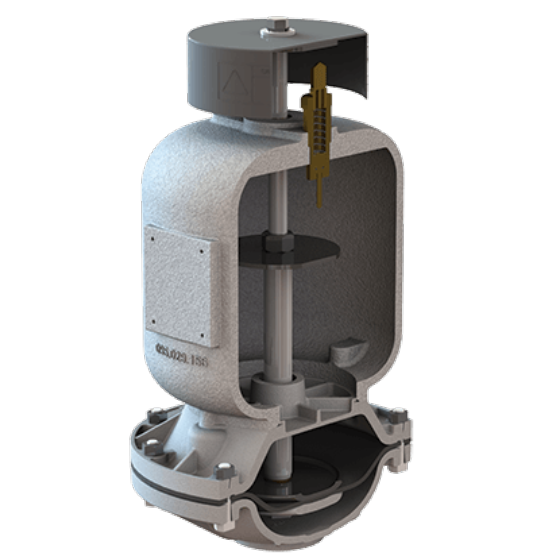

SURGE-SUPPRESSOR
SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.
