1 bolted metal pump
VIEW SPECIFICATIONS
VIEW PERFORMANCE CHART
READ LITERATURE
WATCH VIDEOS

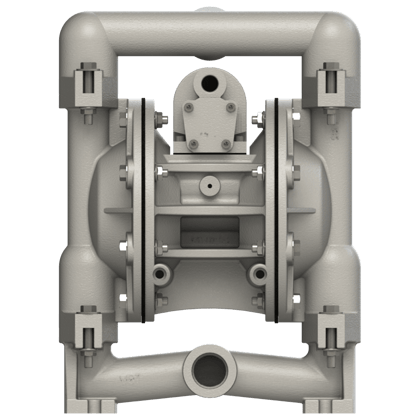

Versamatic’s 1" (25mm) bolted metal air-operated double-diaphragm (AODD) pump uses a patented air valve system to provide non-stalling, lube-free performance with a flow rate of 0-49 gpm (0-185 lpm). The 1" bolted metal AODD pumps offer several advantages that make them perfect for a variety of applications.



Additional Features

  • Simple, low-cost maintenance
  • Durable, long-lasting construction
  • Extended life diaphragms
  • Available in a variety of materials
  • Robust, leak-free construction
  • Patented air distribution that delivers on/off reliability

This pump is ATEX compliant.

Not sure if your chemicals are compatible with this pump? Check out our interactive chemical guide.

ATEX

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-49 gpm (181.7 lpm)
  • Port Size
  • Suction: 1" NPT
  • Discharge: 1" NPT
  • Air Inlet
  • ⅜" NPT
  • Air Exhaust
  • ½" NPT
  • Suction Lift
  • Dry: 15'(4.6m)
  • Wet: 31'(9.4m)
  • Max Solid Size (Diameter)
  • ⅛" (3.2 mm)
  • Max Noise Level
  • 91 dB(A)
  • Shipping Weight
  • Aluminum: 27 lbs (12.2 kg)
  • Stainless Steel: 40 lbs (18.1 kg)
  • Alloy-C: 40 lbs (18.1 kg)

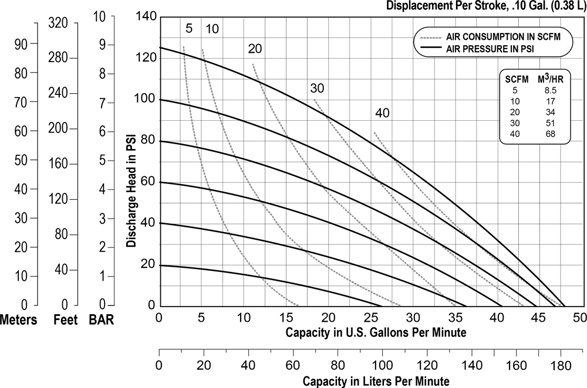

PERFORMANCE CHART
1-Bolted-Metal-Performance
