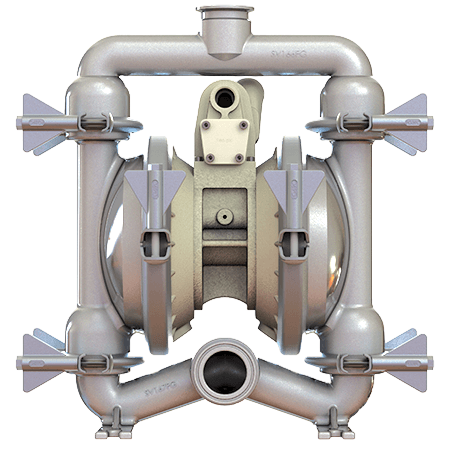

1-1-2-clamped-metal-fda Image
VIEW SPECIFICATIONS
VIEW PERFORMANCE CHART
READ LITERATURE
WATCH VIDEOS

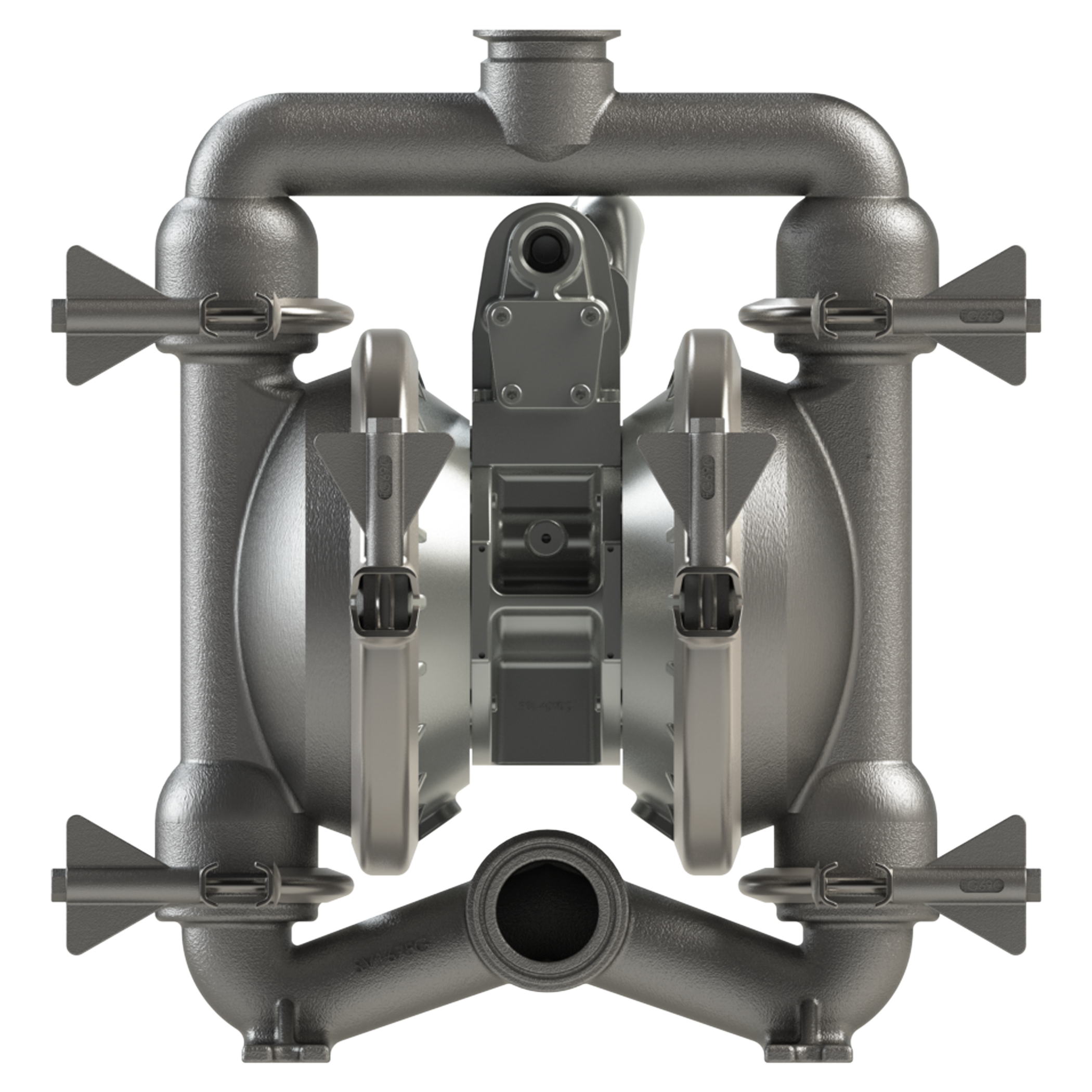

Versamatic manufactures a complete line of FDA-compliant air-operated double-diaphragm (AODD) pumps. Built for specialty applications requiring FDA compliance, our 1 ½" (38mm) clamped metal food processing pump meets your rapid food-grade transfer needs quickly and reliably. This portable pump is ideal for batching and on-demand applications.

This food processing pump can also be ATEX-compliant

FDA Diaphragm Pump Features

  • Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ-in (Ra 3.81 µ-m) internally and externally
  • Extended-life diaphragm: Available with an integrated plate PTFE diaphragm
  • Hygienic wing nuts: For easy assembly
  • Chemical-resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
  • Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
  • Tri-clamped connections: For quick disassembly, easy sanitization and reassembly
  • Clamped constructions: Quick teardown and reassembly
  • Dimensionally interchangeable pumps, parts and air sections: For seamless upgrades

The clamped construction is the lighter weight option of the AODD pump designs, delivering high flow rates and fast maintenance. Additionally, this food-grade transfer pump is ATEX-compliant and widely available in models complying with (EC) No 1935/2004 for Food Contact Materials.

Not sure if your chemicals are compatible with this pump? Check out our interactive chemical guide.

FDACompliantLogo_black_OL EC1935_GobletFork ATEX CE logo EAC

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-70 gpm (0-265 lpm)
  • Port Size
  • Inlet: 2" Tri-Clamp
  • Discharge: 2" Tri-Clamp
  • Air Inlet
  • ½" NPT
  • Air Exhaust
  • ¾" NPT
  • Suction Lift
  • Dry: 15' (4.6m)
  • Wet: 25' (7.6m)
  • Max Particle Size
  • 0.188" (4.76 mm)
  • Shipping Weight
  • Stainless Steel: 57 lbs (26 kg)

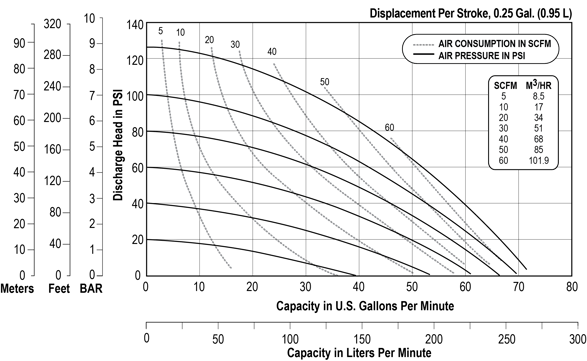

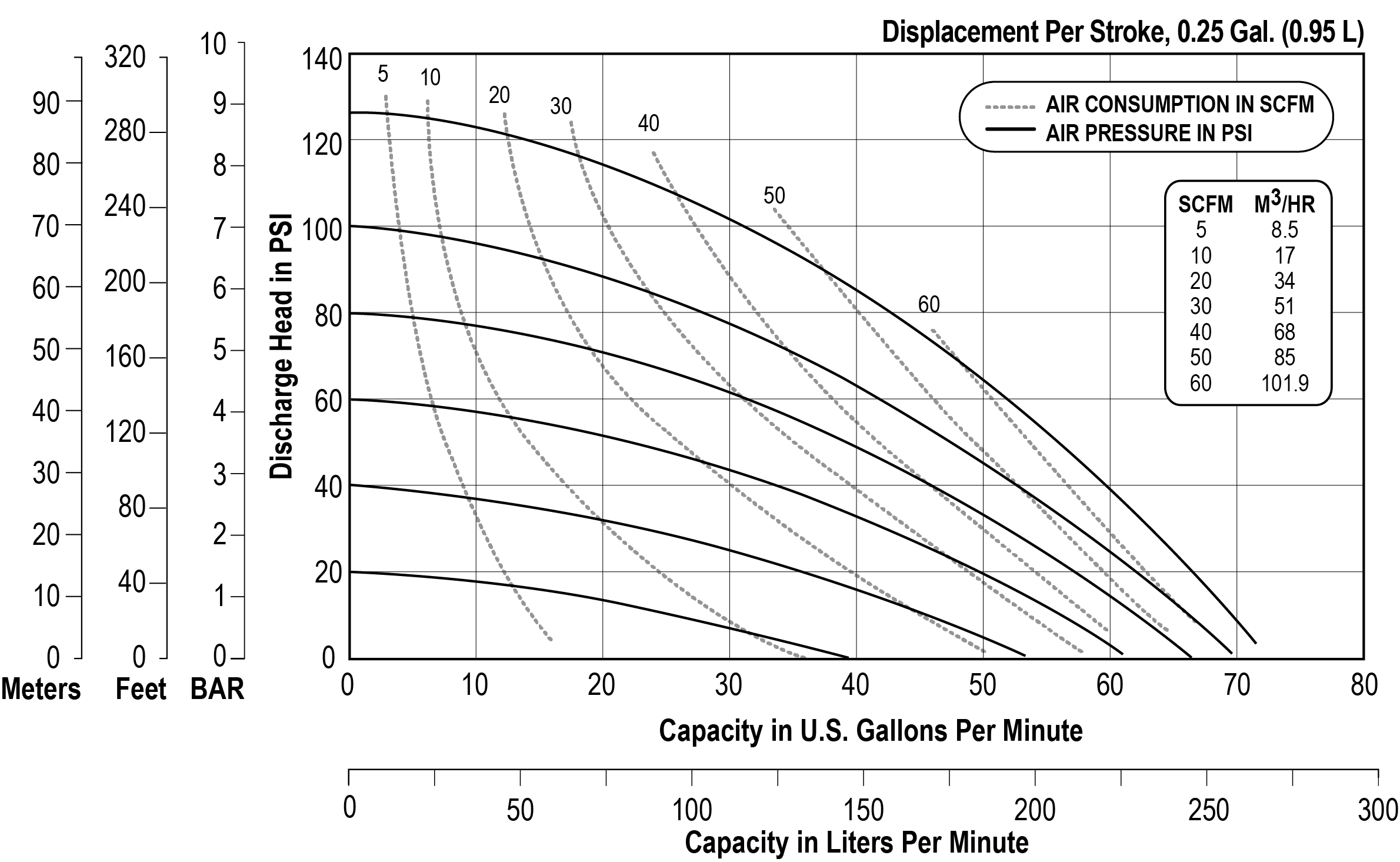

PERFORMANCE CHART
1-1-2-Clamped-Metal-FDA-Performance
