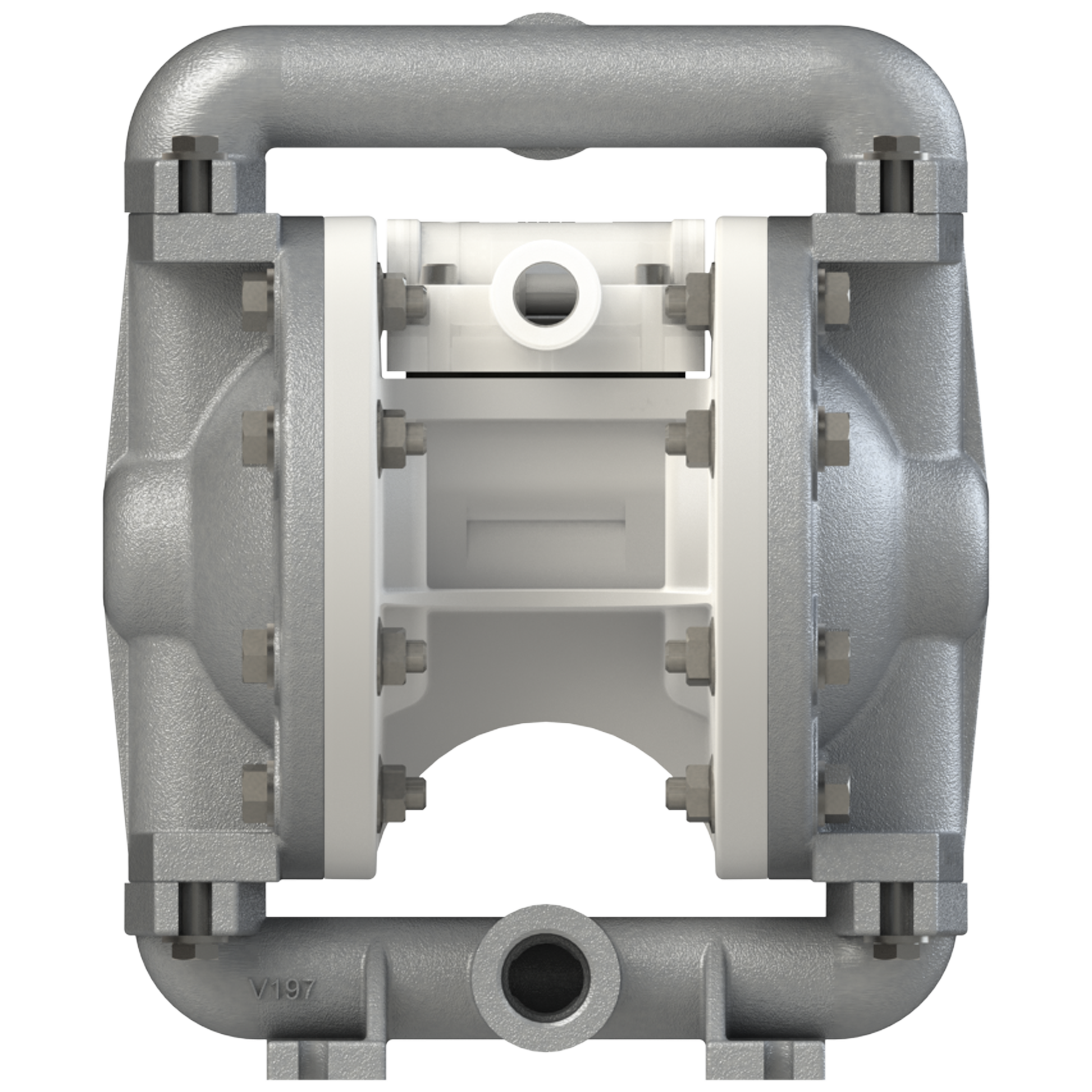

Depend on Versamatic’s ¾" (19mm) aluminum bolted metal air-operated double-diaphragm (AODD) pump for reliable use in lubrication, tire filling, adhesive dispensing, OEM systems and many more industrial applications. Featuring a patented non-stalling, lubrication-free air valve design, the ¾" AODD pump:

  • Features leak-free bolted construction
  • Reduces downtime and ensures continuous operation
  • Is designed to make maintenance simple and cost-effective
  • Has a max flow of 12 gpm (45 lpm)
  • Includes a corrosion-resistant air section
  • Has consistent on/off reliability
  • Has durable and long-lasting construction
  • Is available with several extended-life diaphragm styles to choose from
  • Has simple, low-cost maintenance

Versamatic AODD pumps can effectively handle a broad array of fluid types from water to products that are viscous or abrasive.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-12 gpm (45.4 lpm)
  • Port Size
  • Inlet: ¾" NPT(BSP)
  • Discharge: ¾" NPT(BSP)
  • Air Inlet
  • ⅜" NPT
  • Air Exhaust
  • ⅜" NPT
  • Suction Lift
  • Dry: 13' (3.9 m)
  • Wet: 23' (6.7 m)
  • Max Solid Size (Diameter)
  • 1⁄16 " (1.6 mm)
  • Max Noise Level
  • 84 dB(A)
  • Shipping Weight
  • Aluminum: 11 lbs (3.9 kg)

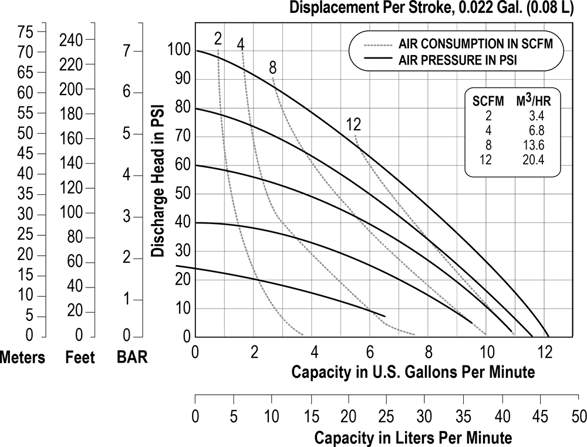

PERFORMANCE CHART
3/4 Bolted Metal Performance
