¼" (6mm) Bolted Plastic
E6PP

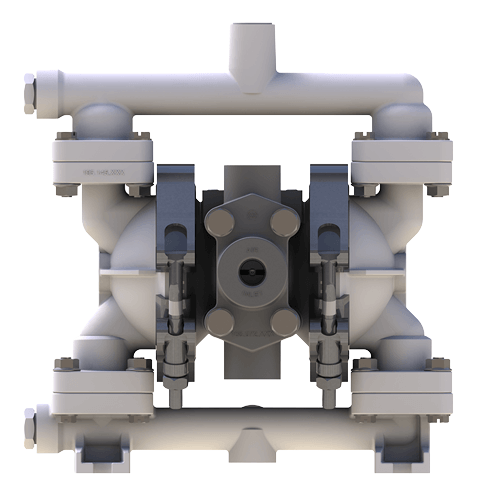

¼" (6MM) PLASTIC AODD PUMP FEATURES

Get reliable performance with the non-stalling, lube-free air valve system in Versamatic’s ¼" (6mm) plastic air-operated double-diaphragm (AODD) pump. Engineered with original equipment manufacturers (OEMs) in mind, this AODD pump provides tremendous system flexibility as well as:

  • Dual-threaded manifolds that are threaded both internally and externally
  • Horizontal Suction and Vertical Discharge center porting with Optional Horizontal Side ports
  • An integrated muffler, making it one of the quietest and most compact pumps in its class

Available in Polypropylene, PVDF (Kynar ®), and conductive Acetal (ATEX Compliant).  Conductive Acetal units can be grounded for pumping volatile mediums.  ¼" AODD pumps are available with a variety of accessories to enhance pump performance, and are can incorporate multiple diaphragm material options.


ORDER THIS PUMP

SPECIFICATIONS

Flow Rate 0-5 gpm (19 lpm)
Port Size
Suction
Discharge

¼" NPT(BSP)
¼" NPT(BSP)
Air Inlet ¼" NPT
Air Exhaust ¼" NPT
Suction Lift
Dry

8' (2.44 m)
Max Solid Size (Diameter) 132 " (1 mm)
Max Noise Level 78 dB(A)

Shipping Weight
Polypropylene
Kynar


3.3 lbs (1.5 kg)
3.9 lbs (1.8 kg)

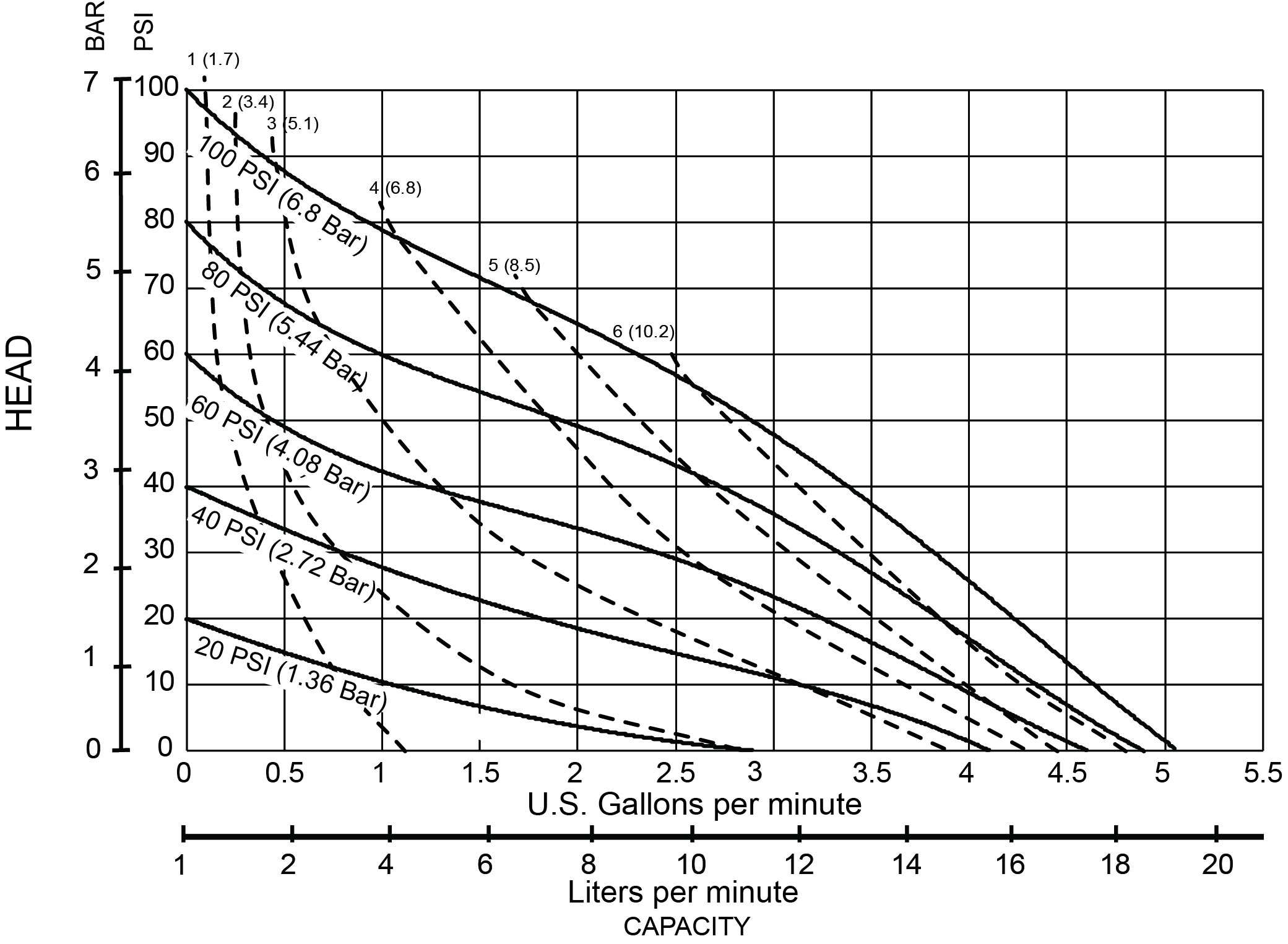

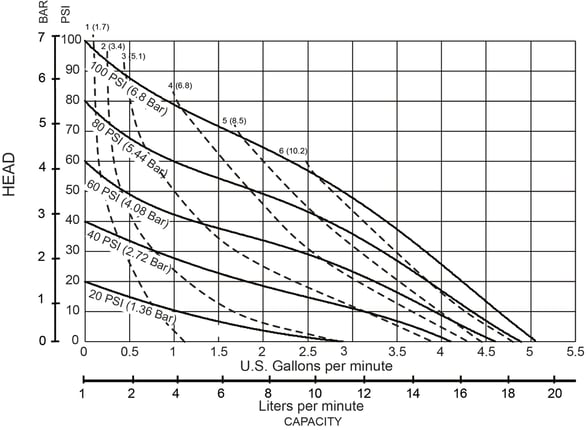

PERFORMANCE CHART

E6
