E40 FRTVW
VIEW SPECIFICATIONS
VIEW PERFORMANCE CHART
READ LITERATURE
WATCH VIDEOS

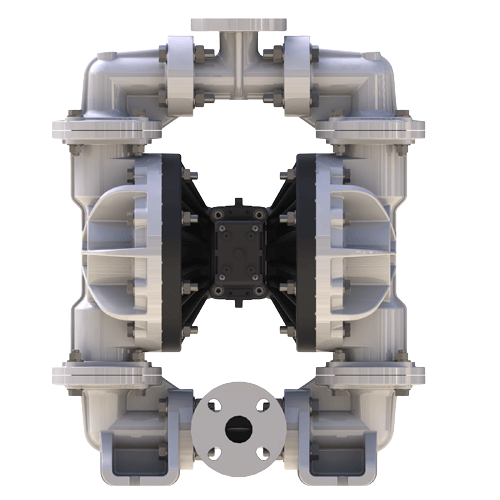

Versamatic’s 1 ½" (38mm) bolted plastic air-operated double-diaphragm (AODD) pump offers installation flexibility with adjustable porting options (horizontal and vertical).

With excellent chemical resistance, the 1 1/2" all plastic pump is ideal for aggressive chemical transfer, waste treatment (filter press) applications, and metal finishing. In addition, this pump is engineered to supply high flow rates in a portable size.



The 1 ½" AODD pump:

  • Maximum flows up to 100 gpm (378 lpm)
  • Chemically resistant all plastic design (Fluid Side / Air Side)
  • Class-leading solids handling up to 0.47 inches (12 mm)
  • Industry-leading displacement per stroke of 0.43 Gal. /1.63 L
  • Delivers consistent on/off reliability
  • Provides excellent chemical resistance
  • Conductive Polypropylene ATEX compliant models available
  • Safe leak-free bolted design

1 1/2" bolted plastic AODD pumps consist of polypropylene and polyvinylidene fluoride (PVDF). Polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance, high tensile strength, and impact resistance. PVDF is best suited for UV applications.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-100 gpm (378 lpm)
  • Port Size
  • Suction: 1 ½" ANSI/DIN
  • Discharge: 1 ½" ANSI/DIN
  • Air Inlet
  • ¾" NPT
  • Air Exhaust
  • 1" NPT
  • Suction Lift
  • Dry: 19' (5.8 m)
  • Wet: 29' (8.8 m)
  • Max Solid Size (Diameter)
  • 0.47" (12 mm)
  • Max Noise Level
  • 89 dB(A)
  • Shipping Weight
  • Polypropylene: 82 lbs (37 kg)
  • PVDF: 112 lbs (51 kg)
  • Conductive Polypropylene: 85 lbs (38 kg)

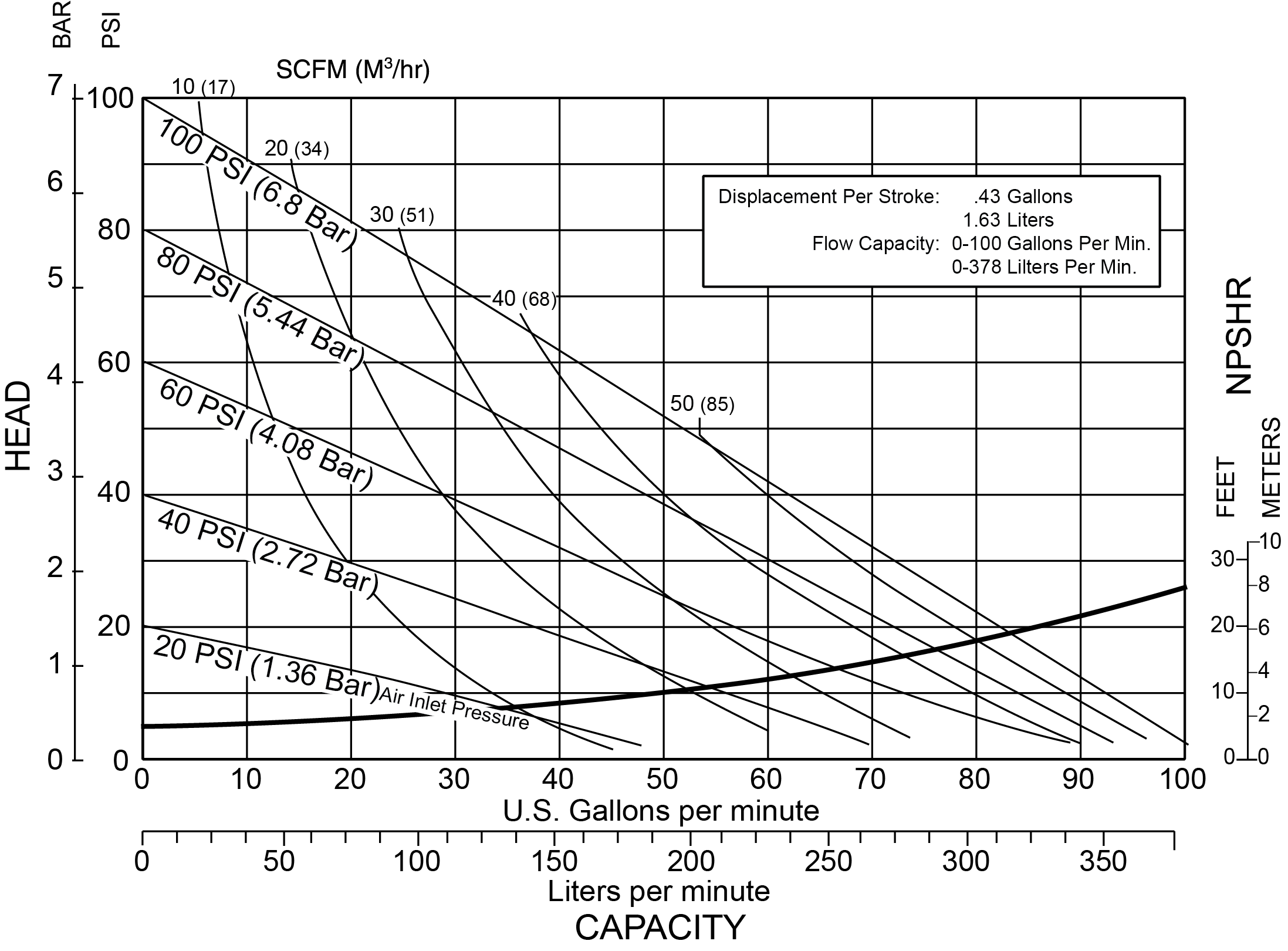

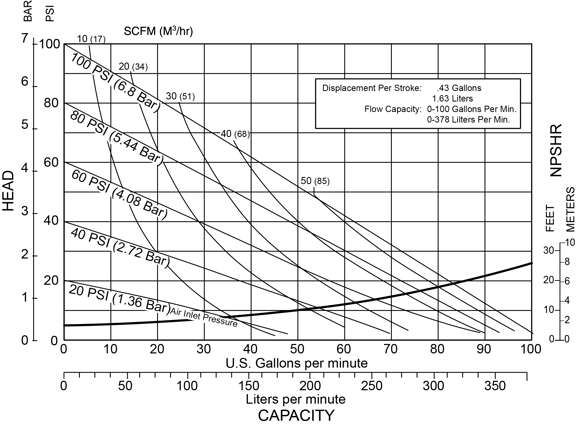

PERFORMANCE CHART
E40 non-met CURVE
