1 1/2 bolted metal
VIEW SPECIFICATIONS
VIEW PERFORMANCE CHART
READ LITERATURE
WATCH VIDEOS

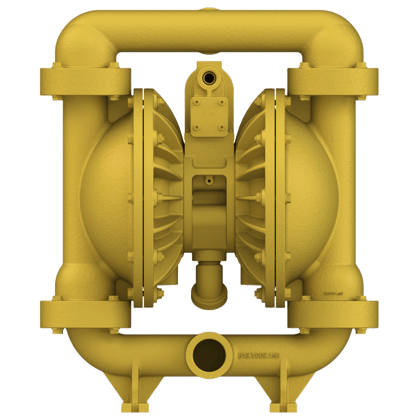

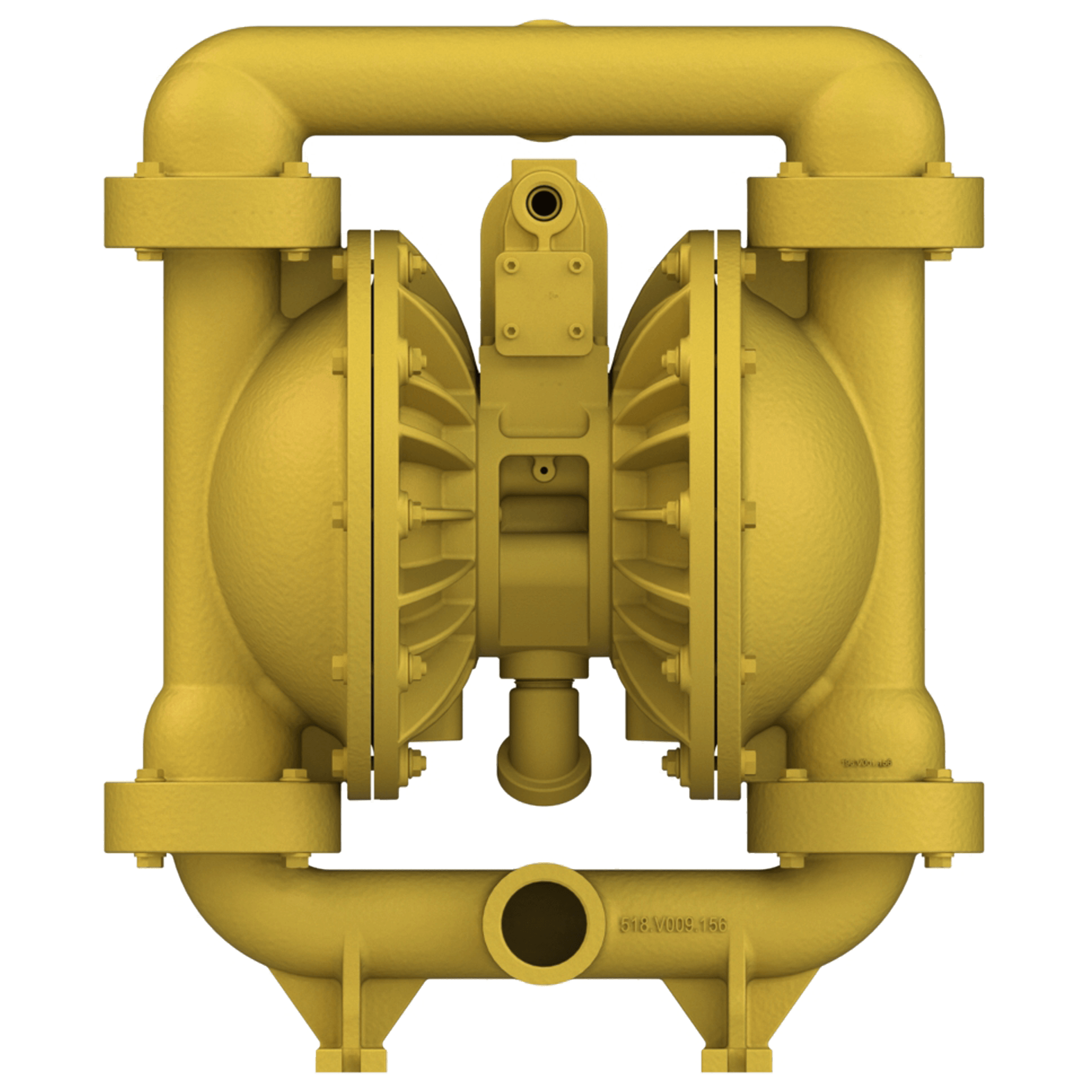

Versamatic’s 1 ½" (38mm) air-operated double-diaphragm (AODD) pump uses a patented air valve system to deliver consistent on/off reliability while maintaining superior air efficiency. Available with several extended-life diaphragm styles to choose from, this portable AODD pump delivers excellent flow rates.

The Versamatic 1 ½" pump is the performance leader in flow rate at 123 gpm (465 lpm),  displacement per cycle and dry suction lift. Additionally, this pump:
  • Makes maintenance easy with a removable air valve sleeve and modular pilot spool design
  • Offers leak-free bolted design for confidently and safely transferring acids and caustics in your application
  • This pump is ATEX compliant

ATEX

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-123 gpm (0-466 lpm)
  • Port Size
  • Inlet: 1 ½" NPT (BSP)
  • Discharge: 1 ½" NPT (BSP)
  • Air Inlet
  • ½" NPT (¾" NPT, SS)
  • Air Exhaust
  • 1" NPT
  • Suction Lift
  • Dry: 19' (5.8 m)
  • Wet: 31' (9.4 m)
  • Max Particle Size
  • ¼" (0.635 cm)
  • Shipping Weight
  • Aluminum: 55 lbs (25kg)
  • Cast Iron: 95 lbs (43 kg)
  • Stainless Steel: 92 lbs (42 kg)

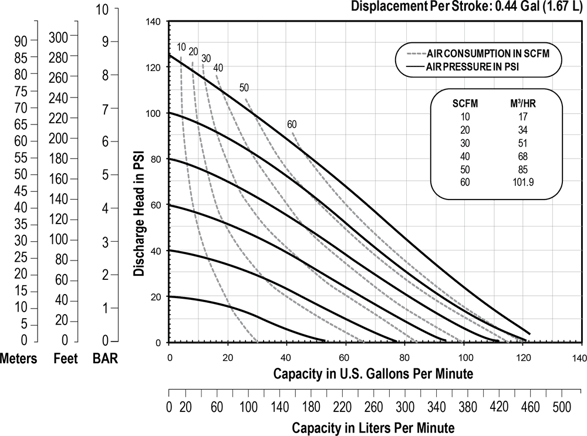

PERFORMANCE CHART
1-1-2-Bolted-Metal-Performance
