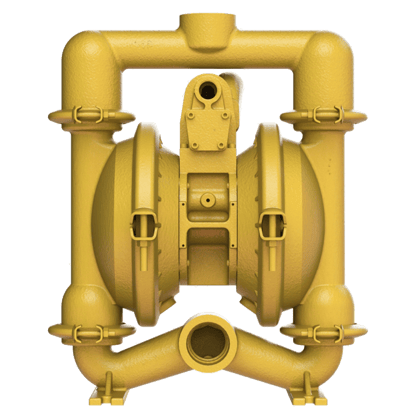

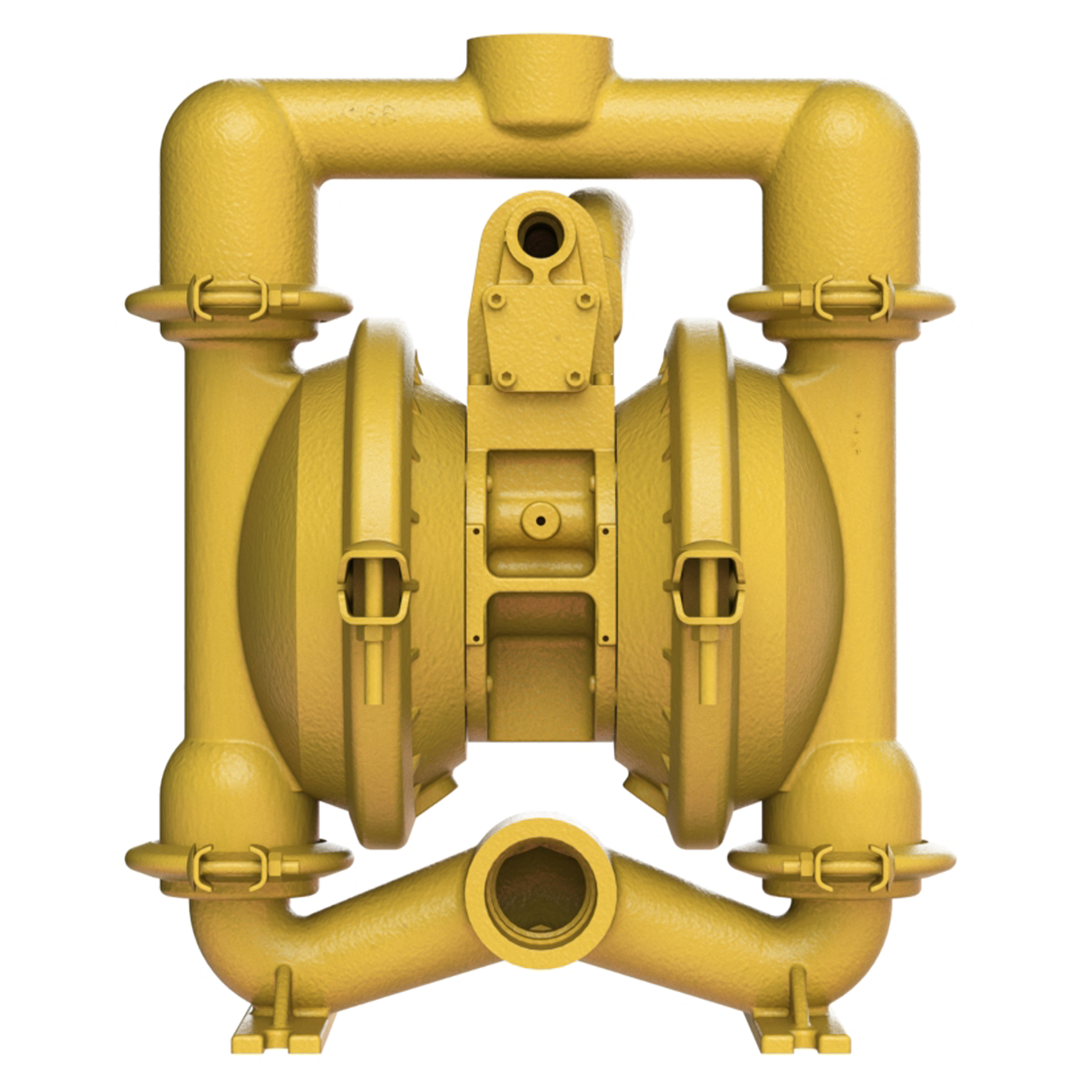

Versamatic’s 1 ½" (38mm) air-operated double-diaphragm (AODD) pump features a classic clamped design that delivers reliability and portability. This pump is dimensionally interchangeable with Wilden 4 Clamped Series. Self-priming and available in a variety of materials, this AODD pump:

  • Features rigid and durable construction
  • Comes with diverse material offerings for your applications
  • Is submersible and portable
  • Is non-freezing and non-stalling
  • Has consistent on/off reliability

Versamatic AODD pumps can effectively handle a broad array of fluid types—from water to products that are viscous or abrasive.

This pump is ATEX compliant.

ATEX

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-71 gpm (0-268 lpm)
  • Port Size
  • Suction: 1 ½" NPT
  • Discharge: 1 ¼" NPT
  • Air Inlet
  • ½" NPT
  • Air Exhaust
  • ¾" NPT
  • Suction Lift
  • Dry: 19'(5.8m)
  • Wet: 31'(9.4m)
  • Max Solid Size (Diameter)
  • 3⁄16" (4.76 mm)
  • Max Noise Level
  • 101 dB(A)
  • Shipping Weight
  • Aluminum: 55 lbs (25 kg)
  • Cast Iron: 95 lbs (43 kg)
  • Stainless Steel: 92 lbs (42 kg)
PERFORMANCE CHART

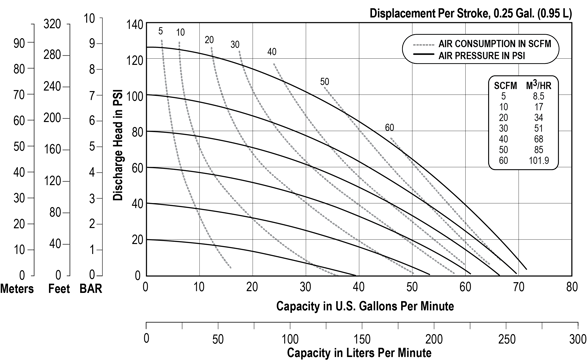

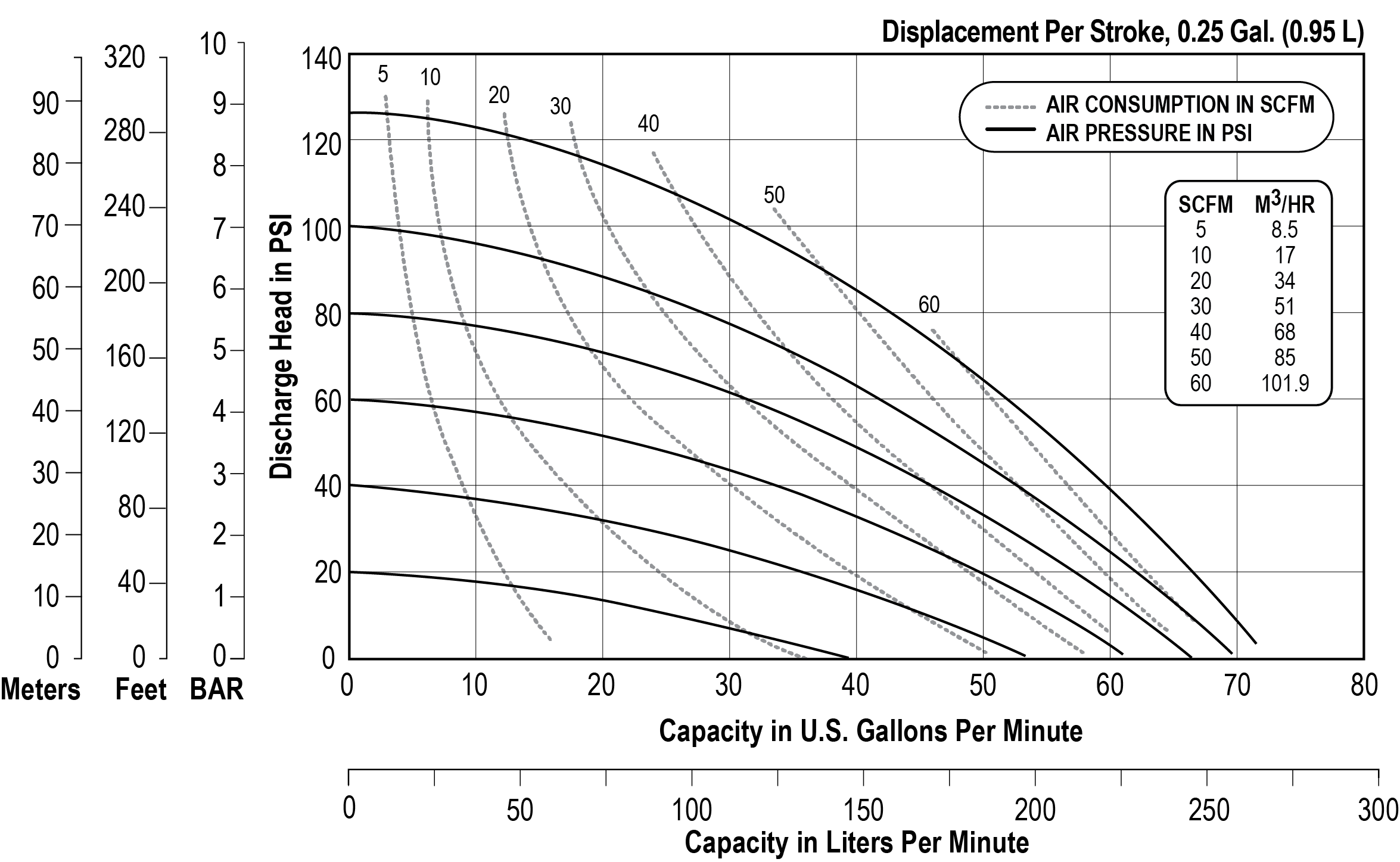

1 1/2 Clamped Metal Performance
Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTERREGULATOR

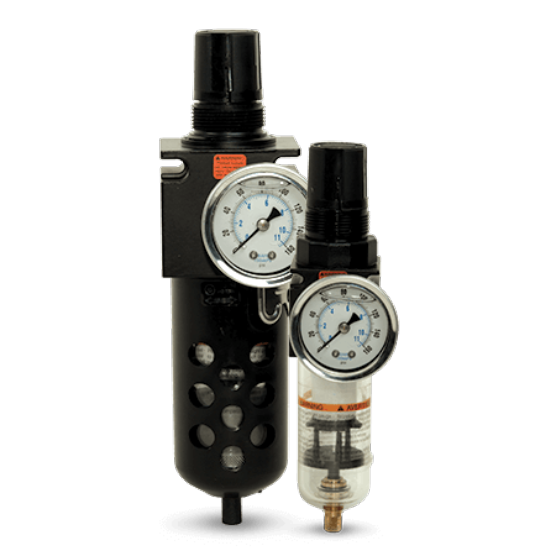

FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID-LEVEL CONTROL
LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE-SUPPRESSOR
SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.

VIEW ALL PARTS & ACCESSORIES

Not sure if this is the right pump? Use our Pump Selection Tool to find one that fits your needs.

Find the Perfect Pump
