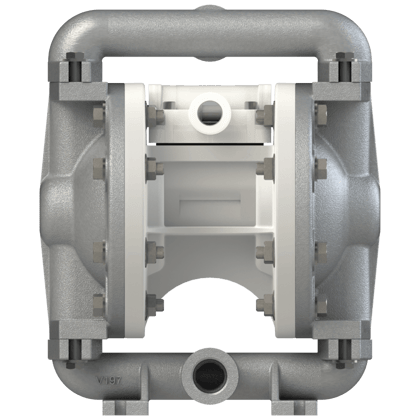

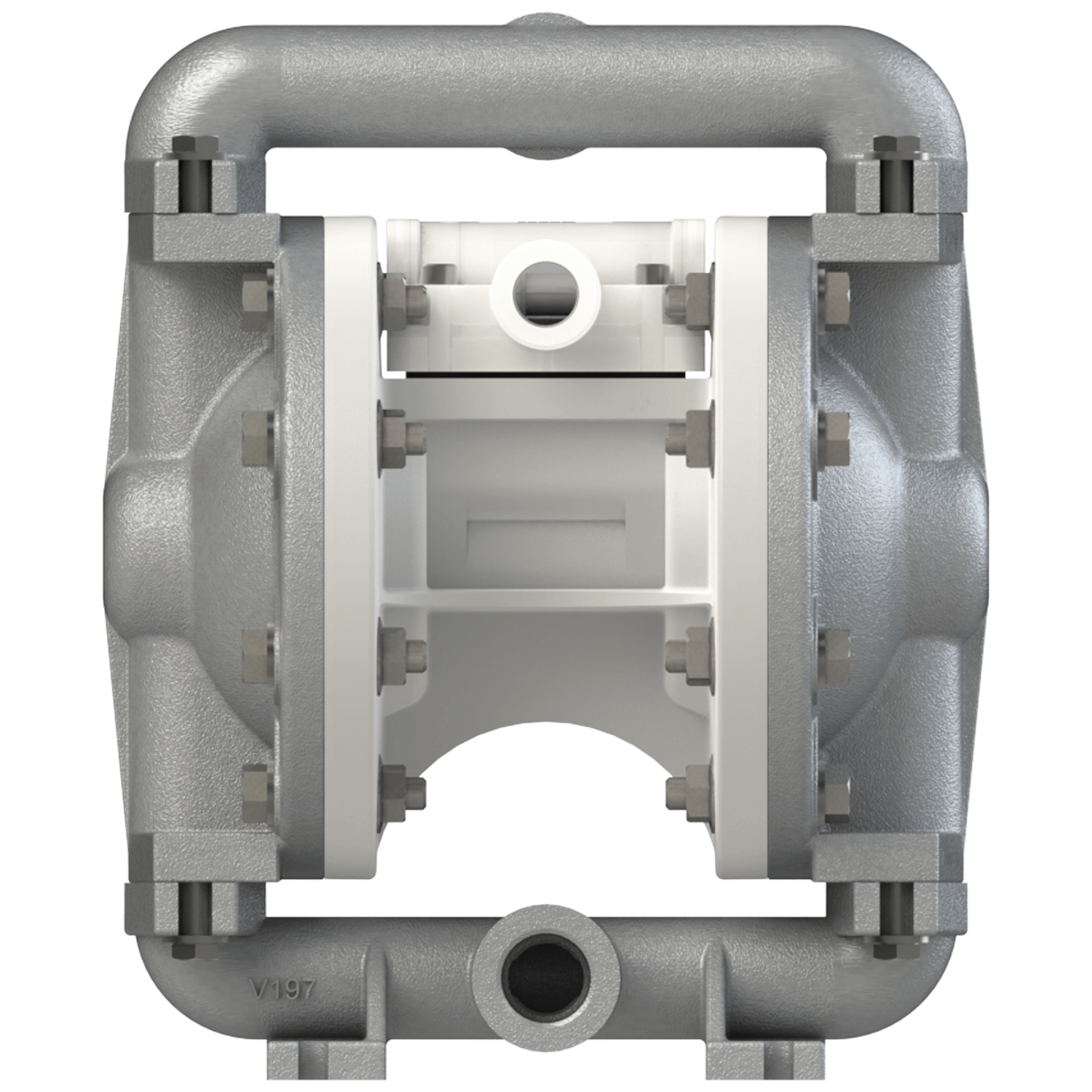

The leak-free bolted construction of Versamatic’s ½" (13mm) bolted metal air-operated double-diaphragm pump (AODD) pump reduces downtime and ensures continuous operation, as well as provides a greater positive seal for safe, reliable transfer of chemicals in OEM systems and applications. A patented non-stalling, lubrication-free air valve design provides the reliability you need and lets you safely and confidently transfer chemicals.

With a diverse material offering for your applications, the ½" bolted metal AODD pump, along with the ½" bolted plastic pump, features:

  • A max flow of 12 gpm (45 lpm) compared to our other products
  • A corrosion-resistant air section
  • On/off reliability
  • Durable and long-lasting construction
  • Extended-life diaphragms
  • Simple, low-cost maintenance

This pump is available in an ATEX-compliant construction.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-12 gpm (45.4 lpm)
  • Port Size
  • Suction: ½" NPT
  • Discharge: ½" NPT
  • Air Inlet
  • ⅜" NPT
  • Air Exhaust
  • ⅜" NPT
  • Suction Lift
  • Dry: 13' (3.9 m)
  • Wet: 22' (6.7 m)
  • Max Solid Size (Diameter)
  • 1⁄16 " (1.6 mm)
  • Max Noise Level
  • 84 dB(A)
  • Shipping Weight
  • Aluminum: 11 lbs (3.9 kg)
  • Stainless: 17 lbs (7.7 kg)
  • Alloy C: 17 lbs (7.7 kg)

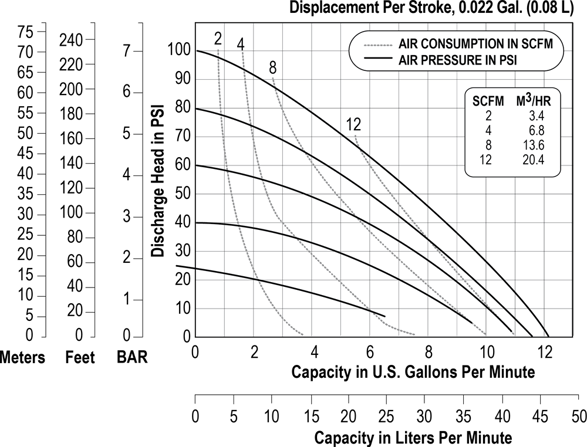

PERFORMANCE CHART
1-2-Bolted-Metal-Performance
