2'' clamped metal
VIEW SPECIFICATIONS
VIEW PERFORMANCE CHART
READ LITERATURE
WATCH VIDEOS

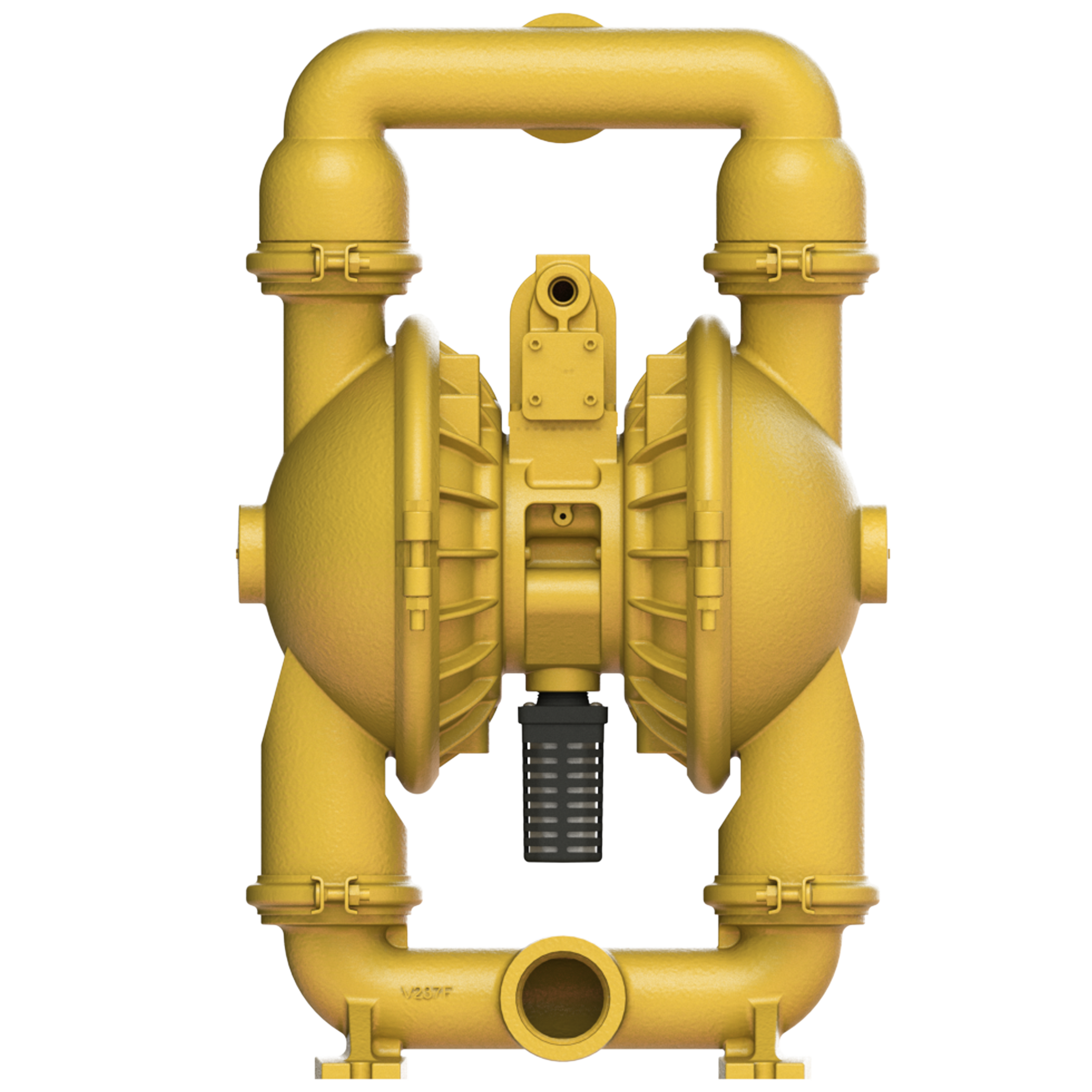

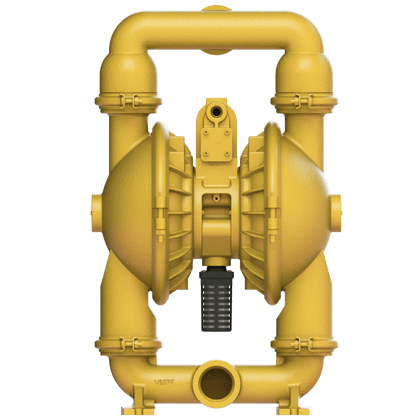

For decades, this classic style offers a simple clamped design, making pumping easy. With over a million installed globally, the trusted design of the 2" clamped metal ATEX pump features a maximum flow rate of 185 gpm (700 lpm). This ATEX-compliant air-operated double-diaphragm (AODD) pump is suitable for use in potentially hazardous environments when the equipment is properly grounded. This pump is dimensionally interchangeable with Wilden 8 Clamped Series.



ATEX Diaphragm Pump Safety Benefits

  • Fully groundable
  • No isolated metallic hardware components
  • Electrically conductive materials of construction
  • Electrostatic discharges are dissipated in a continual current path throughout the pump to a natural ground (translation: groundable)

ATEX

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-185 gpm (700 lpm)
  • Port Size
  • Suction: 2” NPT
  • Discharge: 2” NPT
  • Air Inlet
  • ½" NPT
  • Air Exhaust
  • 1" NPT
  • Suction Lift
  • Dry: 17' (5.2 m)
  • Wet: 32' (9.8 m)
  • Max Solid Size (Diameter)
  • ¼" (6.4 mm)
  • Max Noise Level
  • 96 dB(A)
  • Shipping Weight
  • Aluminum: 65 lbs (29.5 kg)
  • Cast Iron: 113 lbs (51.3 kg)
  • Stainless: 106 lbs (48.1 kg)
  • ** Stainless Center add: 31 lbs (14.1 kg)

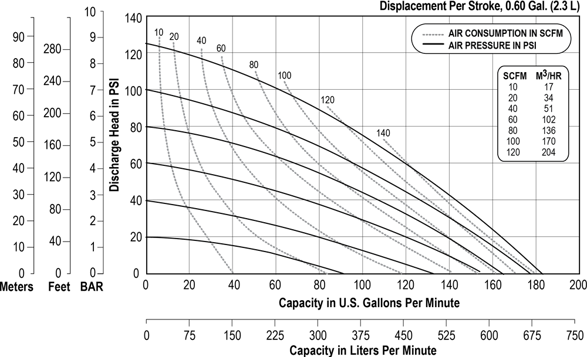

PERFORMANCE CHART
2
Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTERREGULATOR

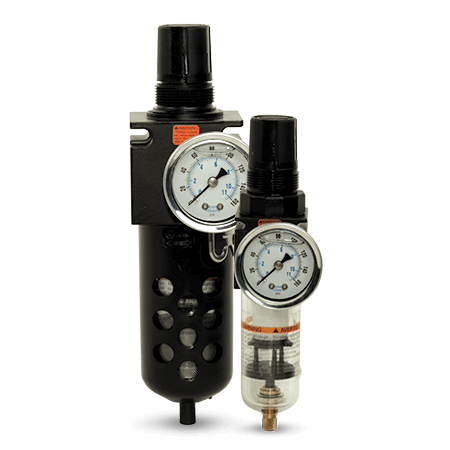

FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID-LEVEL CONTROL
LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE-SUPPRESSOR

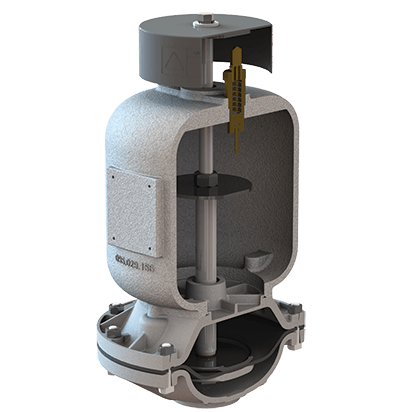

SURGE SUPPRESSOR
