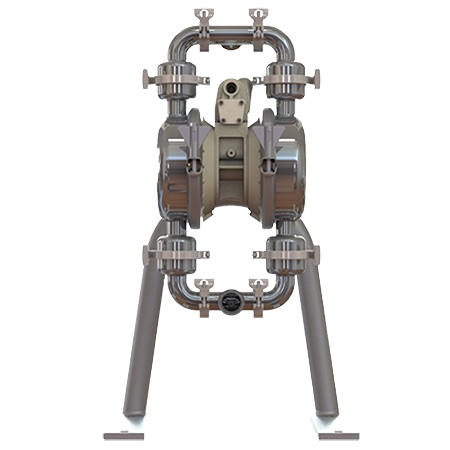

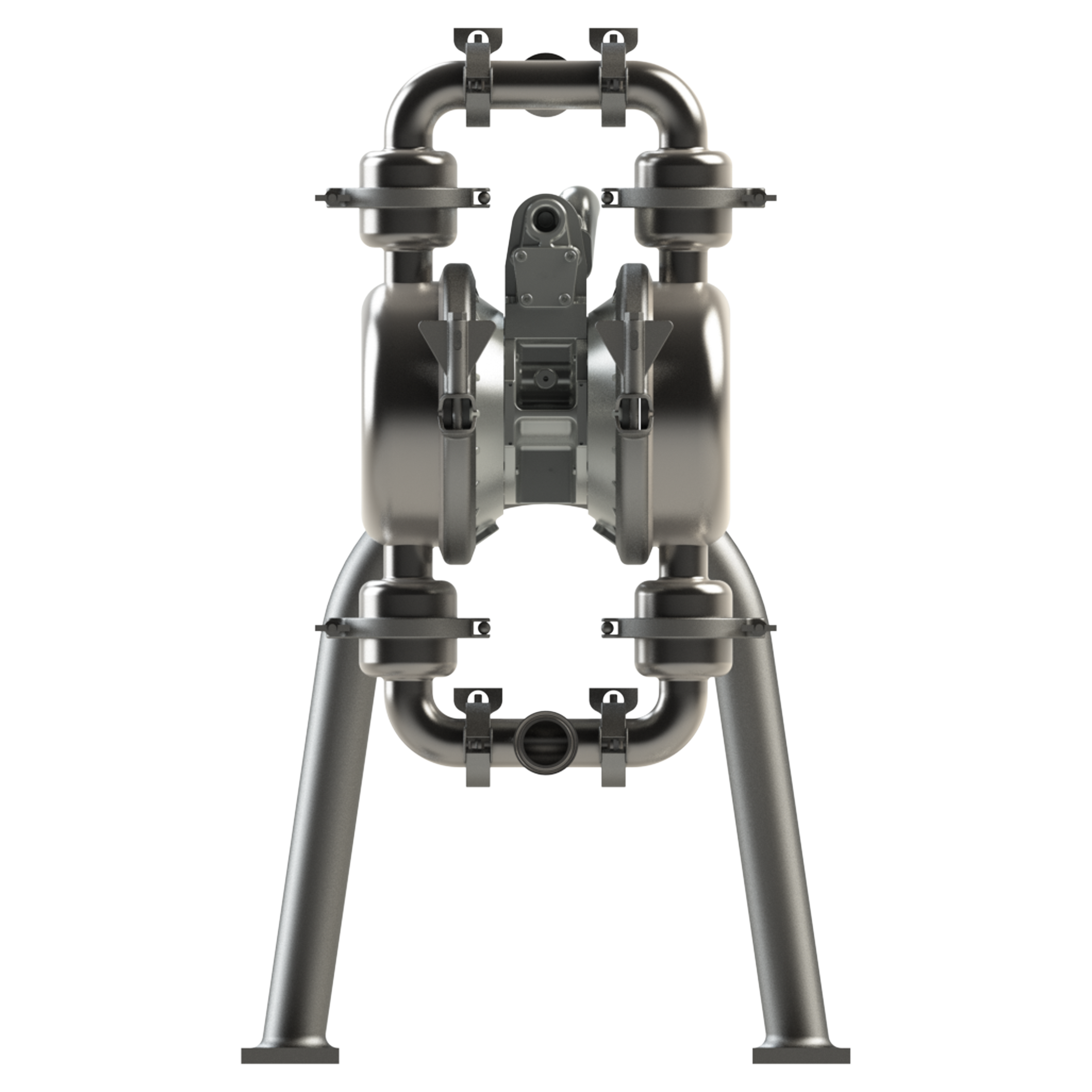

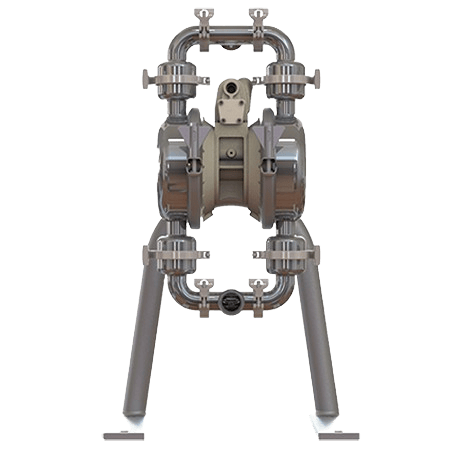

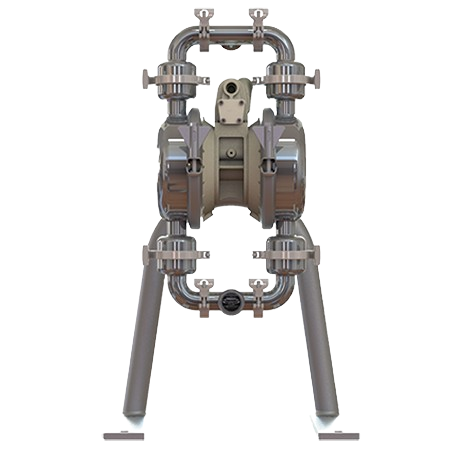

1 ½” (38mm) Clamped Metal Hygienic AODD Pump

Versamatic’s 1 ½" (38mm) specialty clamped stainless steel hygienic air-operated double-diaphragm (AODD) pump has been specifically designed to meet the 3-A sanitary standards for AODD pumps. The Versamatic leak detection unit comes standard on all 3-A sanitary diaphragm pumps, delivering peace of mind by reducing the chance of contamination to the product from the air-side. The leak detection unit can signal to shut the pump down in the event liquid is detected (diaphragm failure) to prevent environmental damage.

Sanitary AODD Pump Features

Highly polished 32µ-in (Ra 0.8 µ-m) or better stainless steel components for superior cleanability
Removable ball cages for sanitization and cleaning
A rotating pump stand for clean-in-place (CIP) capabilities
A patented air valve system for non-stalling, lube-free performance
Offered with a wide range of diaphragm materials
The Fusion™ diaphragm integrates the outer plate traditionally found in diaphragm pumps. The smooth shape and design of this diaphragm eliminate potential contaminant entrapment areas, offering optimal sanitization.
Clamped construction allows for rapid teardown and reassembly

3-A

With the addition of Versamatic’s leak detection system and with Fusion integral bonded plate PTFE diaphragms, these pumps have been specifically designed to meet the 3-A sanitary standards for AODD pumps. Versamatic 3-A sanitary AODD pumps are available in 1 ½" and 2" sizes. View our 3-A certification here.

PUMP RESOURCES

SPECIFICATIONS

Flow Rate
0-86 gpm (325.5 lpm)

Port Size
Suction: 1 ½" Tri-Clamp
Discharge: 1 ½" Tri-Clamp

Air Inlet
½" NPT

Air Exhaust
¾" NPT

Suction Lift
Dry: 15' (4.57 m)
Wet: 25' (7.62 m)

Max Solid Size (Diameter)
⅜" (9.5 mm)

Max Noise Level
101 dB(A)

Shipping Weight
Stainless Steel: 75 lbs (34 kg)

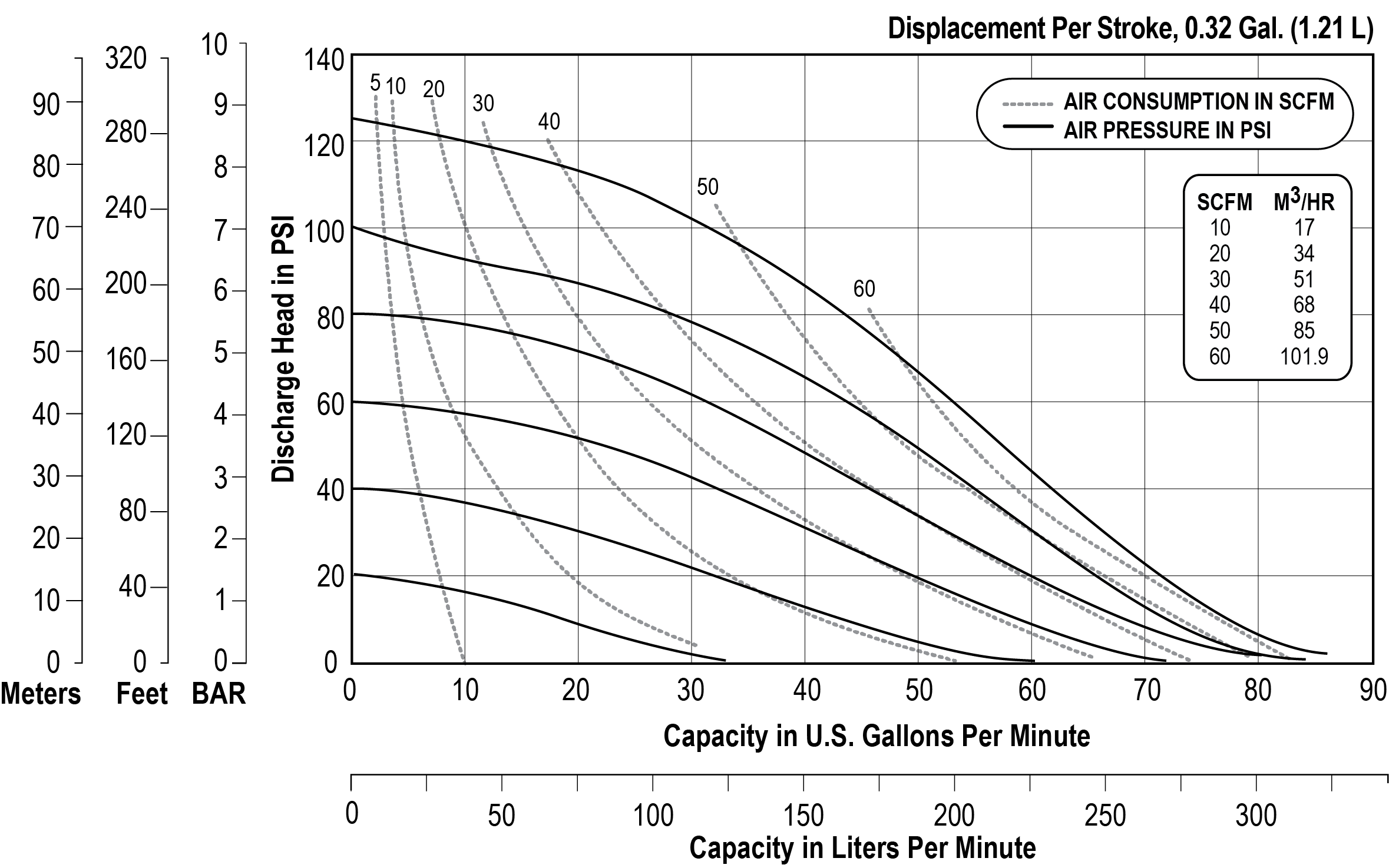

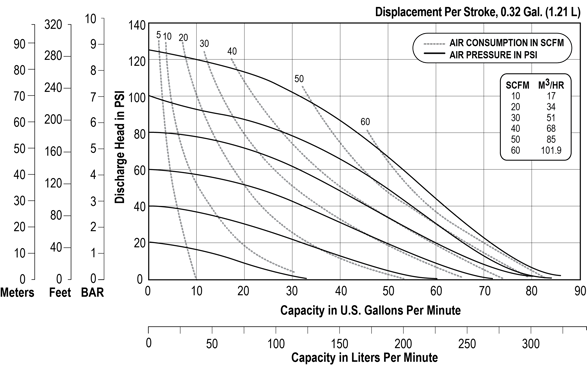

PERFORMANCE CHART

A graph showing multiple dashed lines representing air consumption in SCFM and air pressure in PSI. | Displacer ----AIR CONSUMPTION IN SCFM AIR PRESSURE IN PSI 5223248 SCFM M³/HR 10 17 20 34 30 51 40 68 50 85 60 101.9
