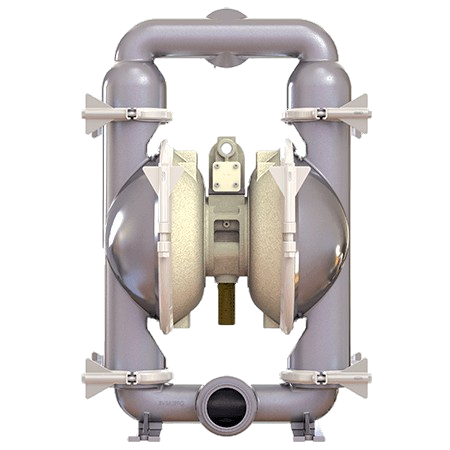

3” (76mm) Clamped Metal FDA Pump

Versamatic’s 3" (76mm) clamped stainless steel air-operated double-diaphragm (AODD) pump is a food processing pump that is built with FDA-compliant materials for specialty food processing applications. This pump comes standard with tri-clamp connections to meet your food-grade transfer needs quickly and reliably.

This 3" AODD pump delivers high flow rates, handles solids and offers fast maintenance.
Additionally, this FDA diaphragm pump is ATEX-compliant and widely available in models complying with (EC) No 1935/2004 for Food Contact Materials.

FDA Diaphragm Pump Features

Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ-in (Ra 3.81 µ-m) internally and externally
Extended-life diaphragm: Available with an integrated plate PTFE diaphragm
Hygienic wing nuts for easy assembly
Chemical-resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
Tri-clamped connections: For quick disassembly, easy sanitization and reassembly
Clamped constructions: Quick teardown and reassembly

Not sure if your chemicals are compatible with this pump? Check out our interactive chemical guide.

PUMP RESOURCES

SPECIFICATIONS

Flow Rate
0-234 gpm (886 lpm)

Port Size
Suction: 3" Tri-Clamp
Discharge: 3" Tri-Clamp

Air Inlet
½" NPT

Air Exhaust
1" NPT

Suction Lift
Dry: 20' (6.1 m)
Wet: 32' (9.8 m)

Max Particle Size
⅜" (9.5 mm)

Max Noise Level
96 dB(A)

Shipping Weight
Stainless: 189 lbs (86 kg)
** Stainless Center add: 50 lbs (22.7 kg)

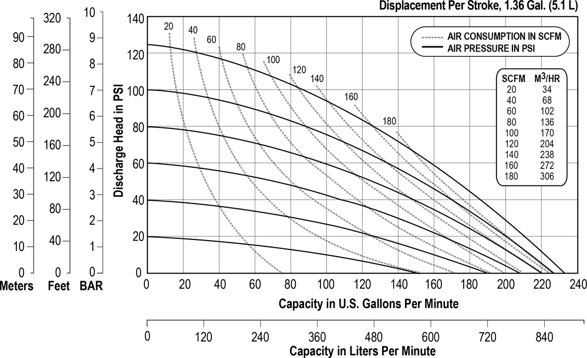

PERFORMANCE CHART

LITERATURE

VIDEOS

REQUEST INFORMATION

Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.

VIEW ALL PARTS & ACCESSORIES
