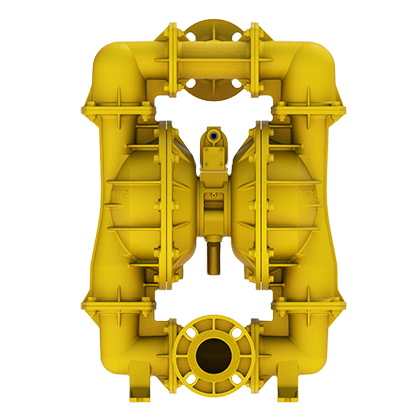

Versamatic’s 3" bolted metal air-operated double-diaphragm (AODD) pump utilizes optimized casting designs to maximize efficiency, delivering high flow rates and excellent solids handling. Just one of the many AODD pumps Versamatic offers, this chemical-resistant diaphragm pump offers the highest flow of all Versamatic AODD metal pumps, meeting your fluid transfer needs quickly and reliably.

The leak-free design reduces downtime and ensures continuous operation. Suited for a wide range of applications, the 3" bolted metal pump features:

  • A flow rate up to 273 gpm (1,033 lpm)
  • Durable, robust castings
  • Simple, low-cost maintenance
  • Extended-life diaphragms
  • Multiple connection and porting types
  • Multiple air section materials available for maximum chemical compatibility

This pump is ATEX compliant.

ATEX

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-273 gpm (1,033 lpm)
  • Port Size
  • Suction: 3" ANSI 150 lbs. Class (DIN80)
  • Discharge: 3" ANSI 150 lbs. Class (DIN80)
  • Air Inlet
  • ½" NPT
  • Air Exhaust
  • 1" NPT
  • Suction Lift
  • Dry: 16' (4.9 m)
  • Wet: 31' (9.4 m)
  • Max Solid Size (Diameter)
  • ⅜" (9.5 mm)
  • Max Noise Level
  • 93 dB(A)
  • Shipping Weight
  • Aluminum: 146 lbs (66.2 kg)
  • Stainless Steel: 245 lbs (111.1 kg)
  • ** Stainless Center add: 50 lbs (22.7 kg)

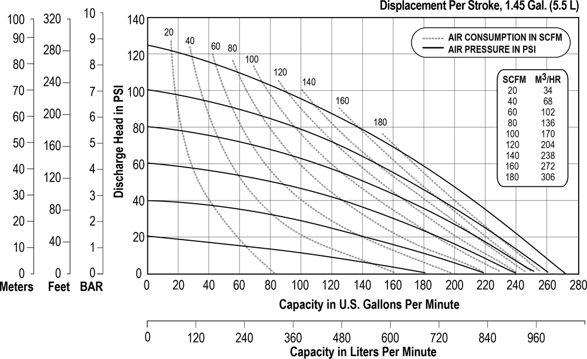

PERFORMANCE CHART
3
Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTERREGULATOR
FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID-LEVEL CONTROL
LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE-SUPPRESSOR
SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.

VIEW ALL PARTS & ACCESSORIES

Don’t know if this is the right pump? Use our Pump Selection Tool to find one that fits your needs.
