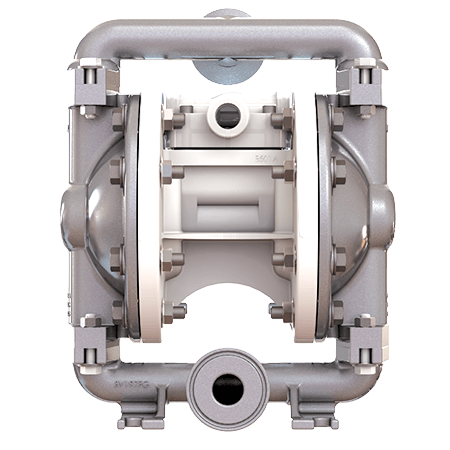

1-2-bolted-metal-fda Image
VIEW SPECIFICATIONS
VIEW PERFORMANCE CHART
READ LITERATURE
WATCH VIDEOS

Versamatic’s ½" (13mm) specialty food processing pump utilizes a patented air valve system to deliver consistent on/off reliability while maintaining superior efficiency. Built with FDA-compliant materials so that it can be specified in applications requiring FDA compliance, this air-operated double-diaphragm (AODD) pump meets your food-grade transfer needs quickly and reliably to ensure continuous operation.

Not sure if what you’re pumping is compatible with this AODD pump? Check out our interactive chemical compatibility guide.

FDA Diaphragm Pump Features

  • Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ-in (Ra 3.81 µ-m) internally and externally
  • Extended-life diaphragm: Available with an integrated plate PTFE diaphragm
  • Chemical-resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
  • Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
  • Tri-clamped connections: For quick disassembly, easy sanitization and reassembly

FDACompliantLogo_black_OLEC1935_GobletForkCE logo EAC

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-12 gpm (45.4 lpm)
  • Port Size
  • Suction: 1 ½" Tri-Clamp
  • Discharge: 1 ½" Tri-Clamp
  • Air Inlet
  • ⅜" NPT
  • Air Exhaust
  • ⅜" NPT
  • Suction Lift
  • Dry: 13' (3.9 m)
  • Wet: 22' (6.7 m)
  • Max Particle Size
  • 1⁄16 " (1.6 mm)
  • Max Noise Level
  • 84 dB(A)
  • Shipping Weight
  • Stainless: 17 lbs (7.7 kg)

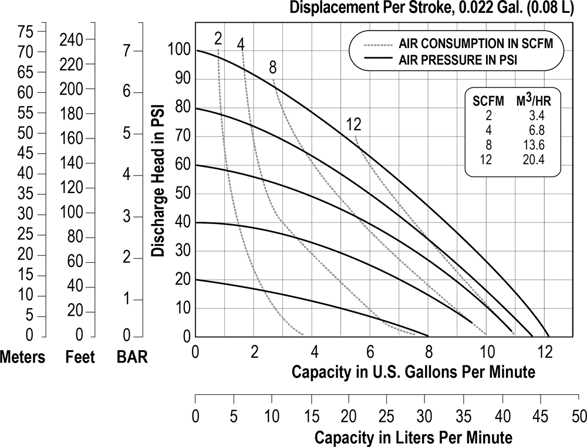

PERFORMANCE CHART
1-2-Bolted-Metal-FDA-Performance
