1" (25MM) HIGH-PRESSURE BOLTED METAL

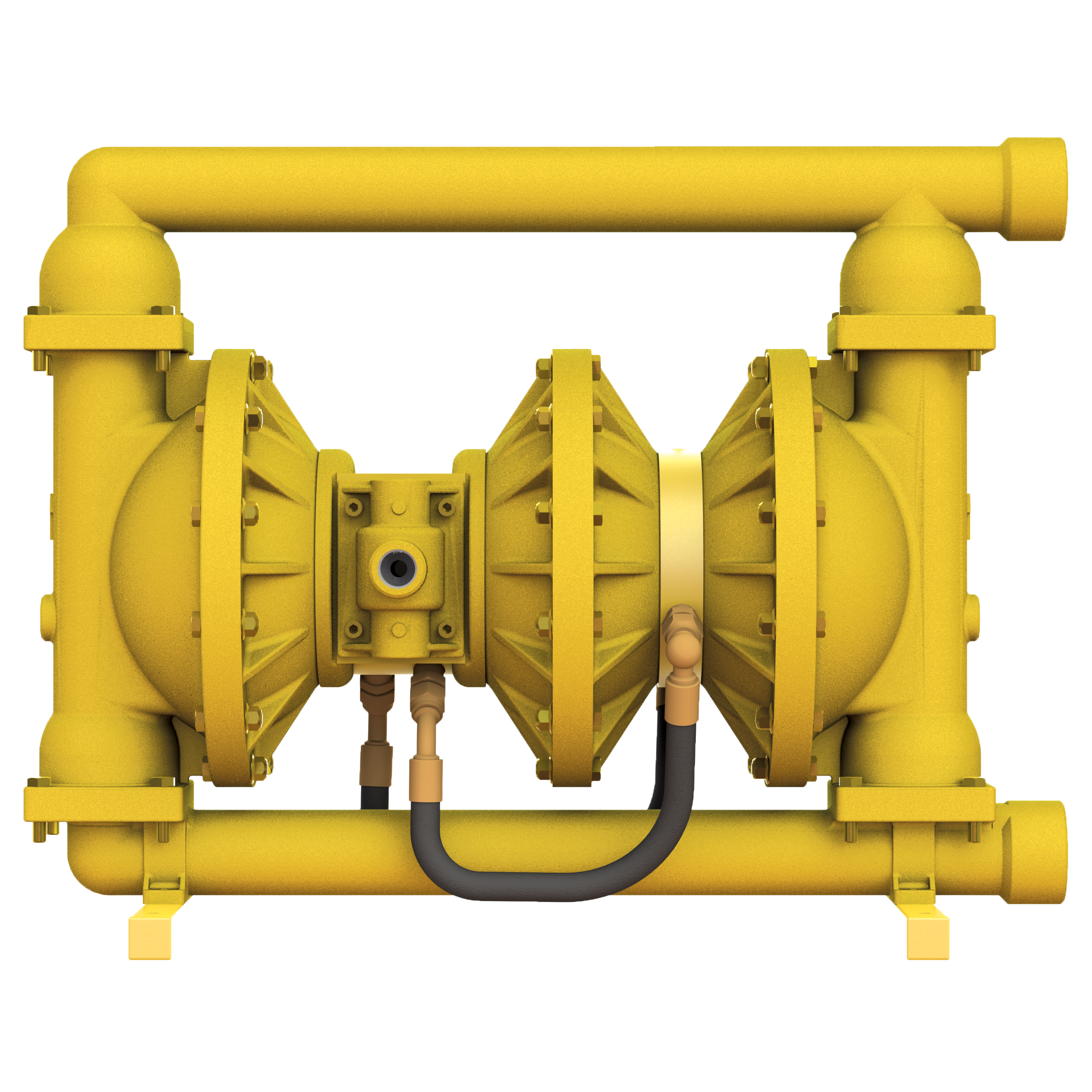

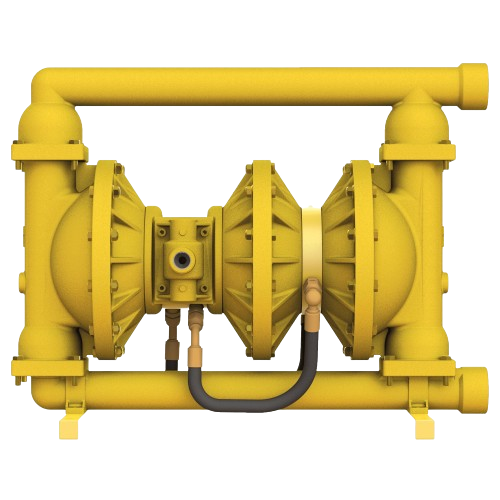

HP1_Straight

1" (25MM) BOLTED METAL HIGH-PRESSURE AODD PUMP

Versamatic’s 1" (25mm) Metallic 2:1 High-Pressure Pump provides nearly double the force in applications where pressure is priority and excellent flow rates are a must. This high-pressure air pump is ideal for thick, viscous fluids (high specific gravity), high head pressure applications, and moving fluids a long distance.

Incorporating two additional air chambers and one extra air side driver diaphragm, doubles the surface area on which air pressure is exerted. This magnifies the force by nearly doubling the air inlet pressure. The magnified pressure is delivered directly to the pumped fluid via the fluid diaphragms. Versamatic AODD pumps achieve high discharge pressures and excellent flow rates.

FEATURES & BENEFITS

  • Nearly 2:1 high pressure with the full flow of a traditional 1" pump and the capability to overcome a higher-pressure range.
  • Simple construction and ease of maintenance
  • Self-priming and end-ported for improved flow
  • Pressures to 232 psi (16.2 bar), flow rates up to 33 gpm (125 lpm)
  • Bolted construction for greater integrity and reliability
  • Reliable pneumatic valve is fully serviceable
  • Safely deadheads - stalls against closed head without damage
  • Restart on demand
  • Suitable for a wide range of applications:
    • Available in either aluminum or stainless-steel wetted path material
    • Aluminum non-wetted center section
  • Elastomeric options include:
    • Buna
    • Santoprene (PTFE balls)
    • Neoprene
    • PTFE
  • Standard weighted elastomeric or solid PTFE check valve balls & stainless-steel seats for high specific gravity and viscous fluids applications
  • Available with NPT or BSPT threaded porting options
  • All models are ATEX approved

ORDER THIS PUMP

SPECIFICATIONS

Flow Rate 0-33 gpm (125 lpm)
Port Size
Suction
Discharge

1" NPT/BSPT
1" NPT/BSPT
Air Inlet ⅜" NPT
Max Solid Size (Diameter) Up to ⅛" (3 mm)

Shipping Weight
Aluminum
Stainless Steel


52.2 lbs (25.5 kg)
76.1 lbs (34.5 kg)

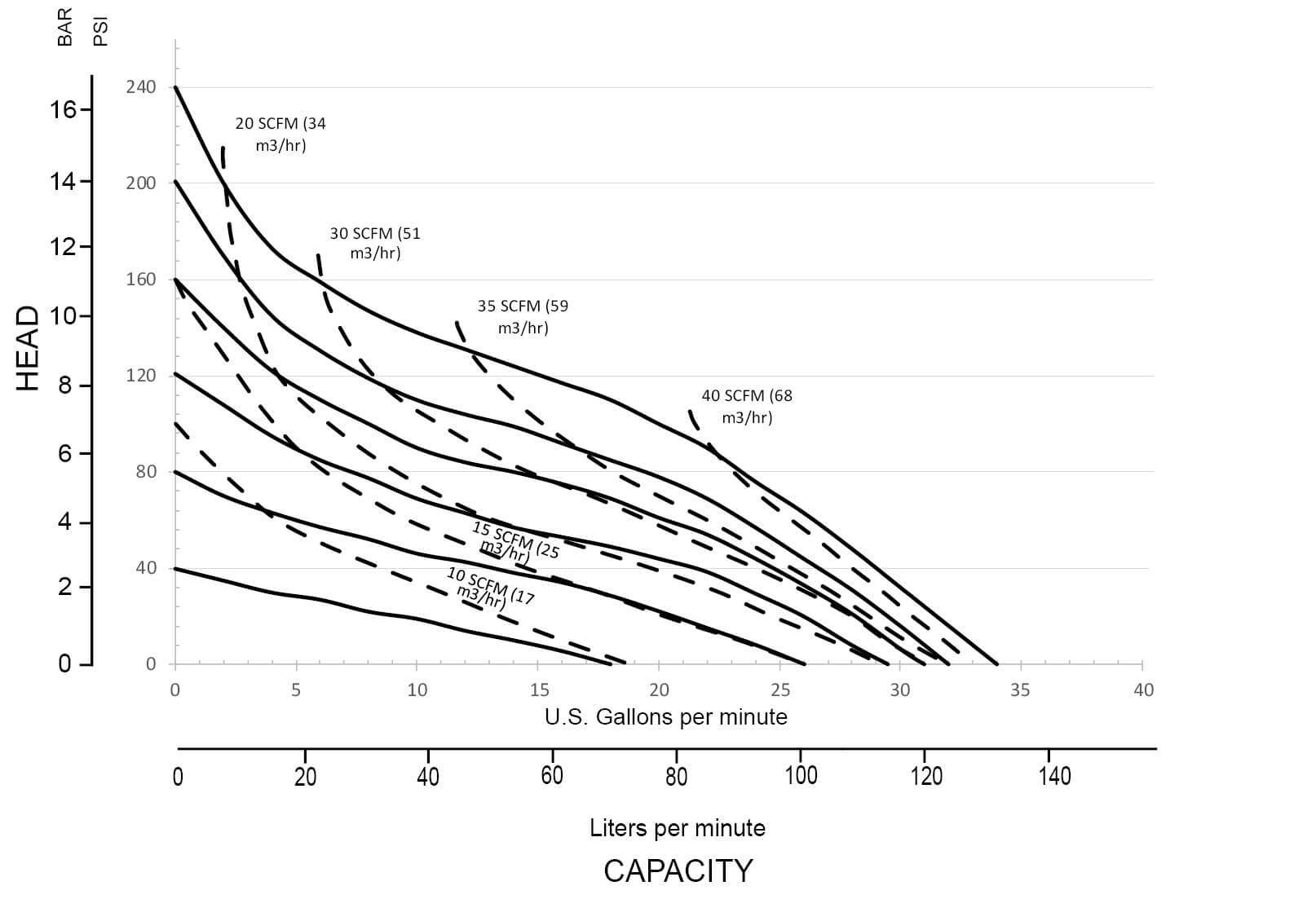

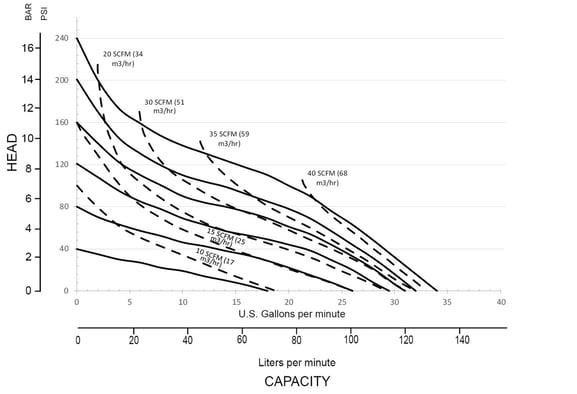

PERFORMANCE CHART

E1HP_0621-1
