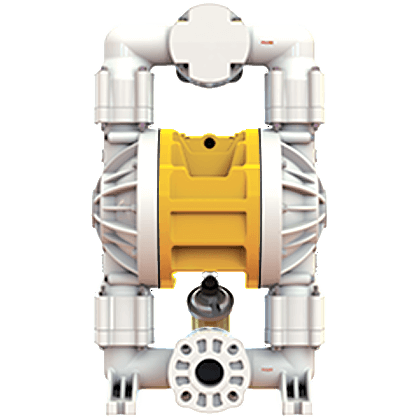

2” (51mm) Bolted Plastic AODD Pump

The rugged, leak-free construction of Versamatic’s 2" (51mm) bolted plastic air-operated double-diaphragm (AODD) pump has a maximum flow rate of 192 gpm (727 lpm) for optimal pumping performance. Some of the features of this AODD pump include:

Excellent flow rate
Multiple porting configurations for installation flexibility
Superior chemical resistance
Lightweight construction
Self-priming
On/off reliability
Non-freezing, non-stalling

2" bolted plastic AODD pumps consist of polypropylene and polyvinylidene fluoride (PVDF). Known for its moderate tensile and flex strength, polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance and high tensile strength and impact resistance. PVDF is best suited for UV applications.

Versamatic’s 2" pump is the ideal solution for applications where aggressive chemicals are being moved. These pumps feature wear-reducing components and chemical-resistant materials that further improve your total cost of ownership.

As an AODD pump manufacturer, Versamatic is committed to making pumping easy from product selection to installation and beyond.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

PUMP RESOURCES

SPECIFICATIONS

Flow Rate
0-192 gpm (727 lpm)

Port Size
Suction: 2" ANSI/DIN #50 Flange
Discharge: 2" ANSI/DIN #50 Flange

Air Inlet
½" NPTF

Air Exhaust
¾" NPTF

Suction Lift (Dry)
Rubber: 20' (6.10 m)
PTFE: 10' (3.05 m)

Max Solid Size (Diameter)
¼" (6 mm)

Shipping Weight
Polypropylene: 67 lbs (30 kg)
PVDF: 93 lbs (42 kg)

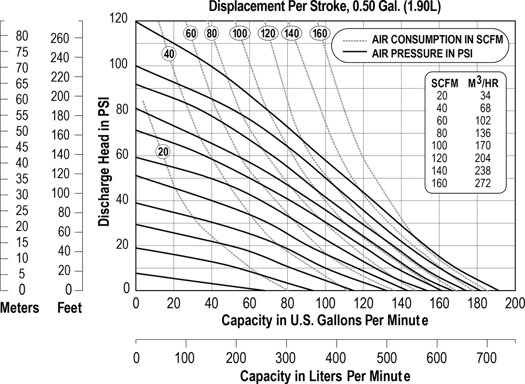

PERFORMANCE CHART
