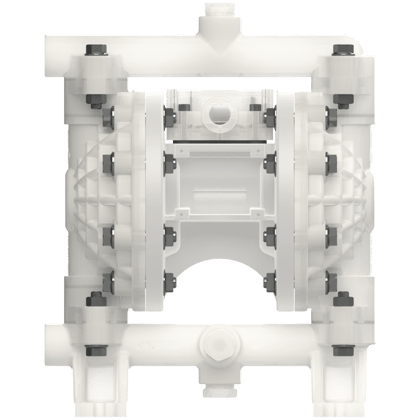

Versamatic’s ½” (13mm) bolted plastic air-operated double-diaphragm (AODD) pump allows you to transfer chemicals safely and confidently. Perfect for a wide range of applications, and available in ½” bolted metal, the rugged, leak-free bolted construction of this AODD pump offers superior chemical resistance. The multiple ported manifolds and multi-position foot mounts offer installation flexibility, allowing the unit to easily fit into existing installations.

Keep your processes running with AODD pumps that deliver consistency, reliability and trouble-free operation. Versamatic’s ½” bolted plastic AODD pump features:

  • An exclusive, patented air valve system
  • Simple, low-cost maintenance
  • Extended-life diaphragms
  • Multiple porting options
  • Long-term reliability
  • On/off reliability

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-11 gpm (42 lpm)
  • Port Size
  • Suction: ½" NPT
  • Discharge: ½" NPT
  • Air Inlet
  • ⅜" NPT
  • Air Exhaust
  • ⅜" NPT
  • Suction Lift
  • Dry: 12' (3.6 m)
  • Wet: 30' (9.1 m)
  • Max Solid Size (Diameter)
  • 1⁄16 " (1.6 mm)
  • Max Noise Level
  • 86 dB(A)
  • Shipping Weight
  • Polypropylene: 8.5 lbs (3.9 kg)
  • PVDF: 12 lbs (5.4 kg)

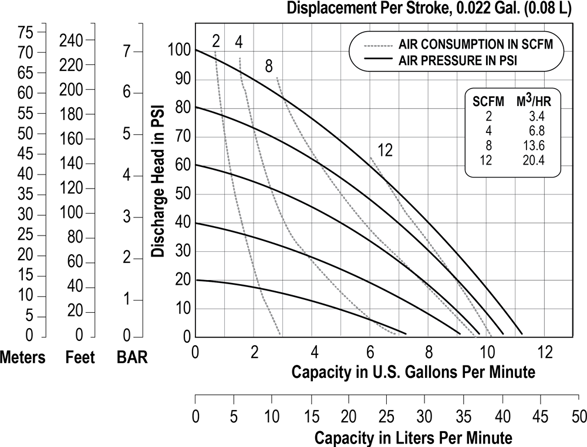

PERFORMANCE CHART
1-2-Bolted-Plastic-Performance
