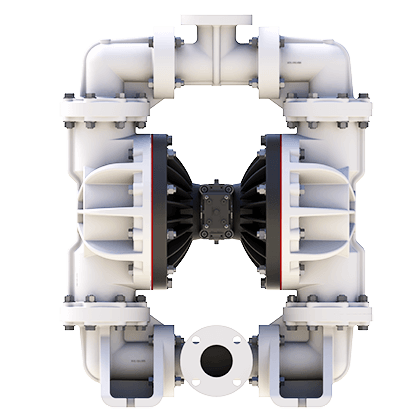

Versamatic’s 3" (76mm) bolted plastic air-operated double-diaphragm (AODD) pump quickly delivers the on/off reliability you need and provides rapid transfer of chemicals safely and confidently. Suitable for bulk chemical transfer and waste treatment (filter press feed) applications, this AODD pump has a max flow rate of 280 gpm (1,060 lpm) and offers several advantages, including:

Patented, reliable air valve system
High chemical resistance
Diverse material offering
Class-leading air efficiency
Robust, solid construction
Non-freezing/non-stalling

Versamatic AODD pumps deliver consistency, reliability and trouble-free operation to keep your processes running.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

PUMP RESOURCES

SPECIFICATIONS

Flow Rate
0-280 gpm (0-1,060 lpm)

Port Size
Inlet: 3" ANSI 150#Class (DIN 80)
Discharge: 3" ANSI 150#Class (DIN 80)

Air Inlet
¾" NPT

Air Exhaust
1" NPT

Suction Lift
Dry: 20' (6.1m)
Wet: 25' (7.6m)

Max Particle Size
0.71" (1.8034cm)

Shipping Weight
Polypropylene: 208 lbs (94 kg)
Kynar: 271 lbs (123 kg)

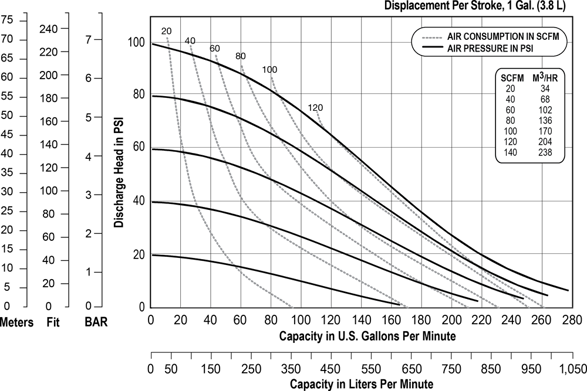

PERFORMANCE CHART

LITERATURE

VIDEOS

Versamatic: How AODD Pumps Work

REQUEST INFORMATION

AODD PUMP PARTS & ACCESSORIES

FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.
