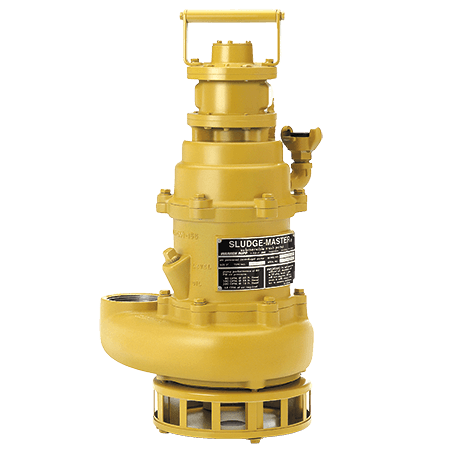

3" (76mm) SludgeMaster™ Centrifugal Pump

VIEW SPECIFICATIONS

VIEW PERFORMANCE CHART

READ LITERATURE

When your specialty pump application calls for mud, trash, or fast dewatering, the air-driven SludgeMaster centrifugal pump delivers. This centrifugal pump provides the highest flow rates of any of our pumps—up to 300 gpm (1,136 lpm)—and safely operates on compressed air and in areas when electric power is unavailable.

Versatile Pumping Solutions

Fully submersible
Weighs 59 pounds (27 kg)
Won’t choke on small trash
Can run dry without damage
Handles solids up to 1 ½" (38mm)
Self-draining to prevent damage in subfreezing weather
Fits in openings as small as 14" (0.36 m) diameter
Self-priming
Optional rock screen for ½" (13mm) solids available
Fool-proof design that handles abrasive substances with less wear
Built for rough handling and long life

SludgeMaster Centrifugal Pumping Applications

Construction
Mining (drift or face dewatering)
Steel mills (sump or quench tanks)

PUMP RESOURCES

SPECIFICATIONS

Flow Rate
300 gpm (1,136 lpm)

Port Size
Discharge: 3" NPT (BSP)

Shipping Weight
Cast Iron: 59 lbs (27 kg)

PERFORMANCE CHART

LITERATURE
