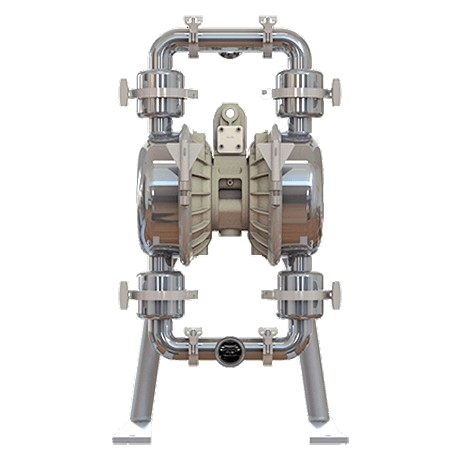

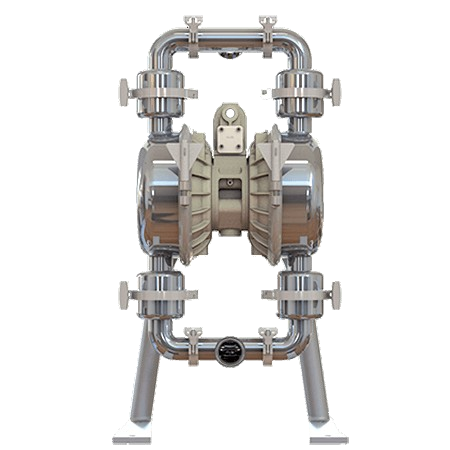

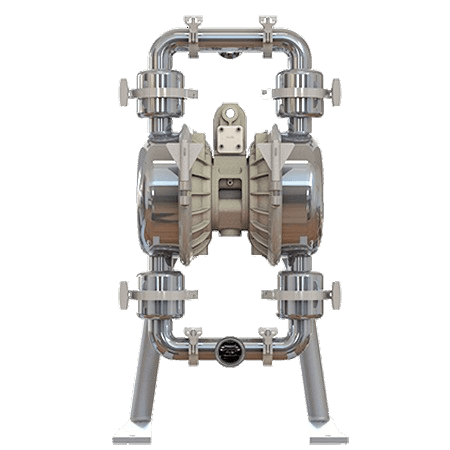

Offering a robust leak-free clamped design for quick teardown and reassembly, Versamatic’s 2" (51mm) clamped stainless steel hygienic diaphragm pump is designed to meet the 3-A sanitary standards for air-operated double-diaphragm (AODD) pumps.
The Versamatic leak detection unit comes standard on all 3-A hygienic diaphragm pumps, delivering peace of mind by reducing the chance of contamination to the product from the air-side. The leak detection unit can signal to shut the pump down in the event liquid is detected (diaphragm failure) to prevent environmental damage.
Hygienic AODD Pump Features
Highly polished 32µ-in (Ra 0.8 µ-m) or better stainless steel components for superior cleanability
Rotating pump stand for clean-in-place (CIP) capabilities
Patented air valve system for non-stalling, lube-free performance
Available with a stainless steel air section (available upon request)
Compatible with a wide variety of wash down treatments and sanitization methods
Hygienic tri-clamp fluid connections make quick disconnect and cleaning easy
3-A
With the addition of Versamatic’s leak detection system and with Fusion™ integral bonded plate PTFE diaphragms, these pumps have been specifically designed to meet the 3-A sanitary standards for AODD pumps. Versamatic 3-A sanitary pumps are available in 1 ½" and 2" sizes. View our 3-A certification here.

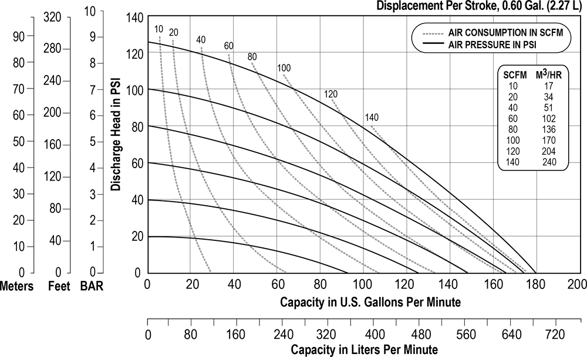

Flow Rate | 0-179 gpm (677 lpm) |
Port Size Suction Discharge |
2" TRI-CLAMP 2" TRI-CLAMP |
Air Inlet | ½" NPT |
Air Exhaust | 1" NPT |
Suction Lift Dry Wet |
15' (4.6 m) 32' (9.8 m) |
Max Solid Size (Diameter) | ⅝" (15.8 mm) |
Max Noise Level | 98 dB(A) |
Shipping Weight |
|
