2" (51 MM) PLASTIC FLAP VALVE PUMP

VIEW SPECIFICATIONS

VIEW PERFORMANCE CHART

READ LITERATURE

WATCH VIDEOS

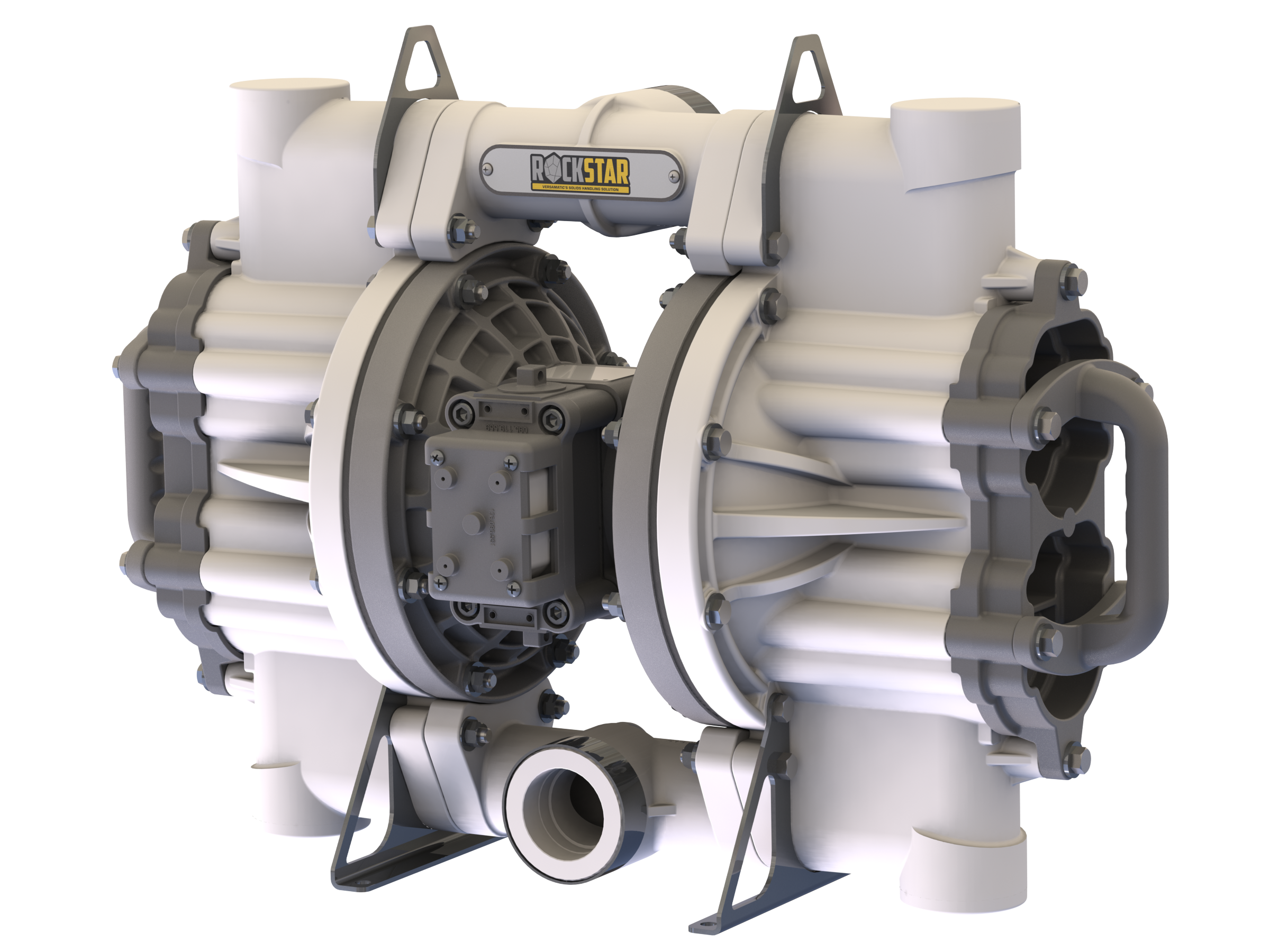

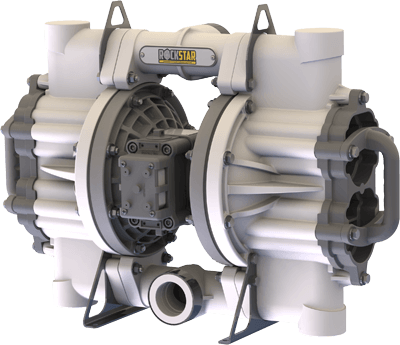

Versamatic’s 2" (51 mm) plastic air-operated double-diaphragm (AODD) pump fitted with flap valves is designed for use in nearly all corrosive and aggressive environments. The robust yet lightweight design allows for ease of maintenance and movement. Ideal for handling corrosive fluids and large solids that would clog other pumps, this unique pump has been engineered to fully function in any position.

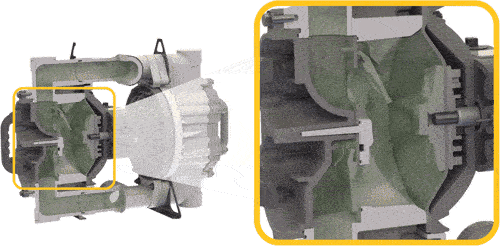

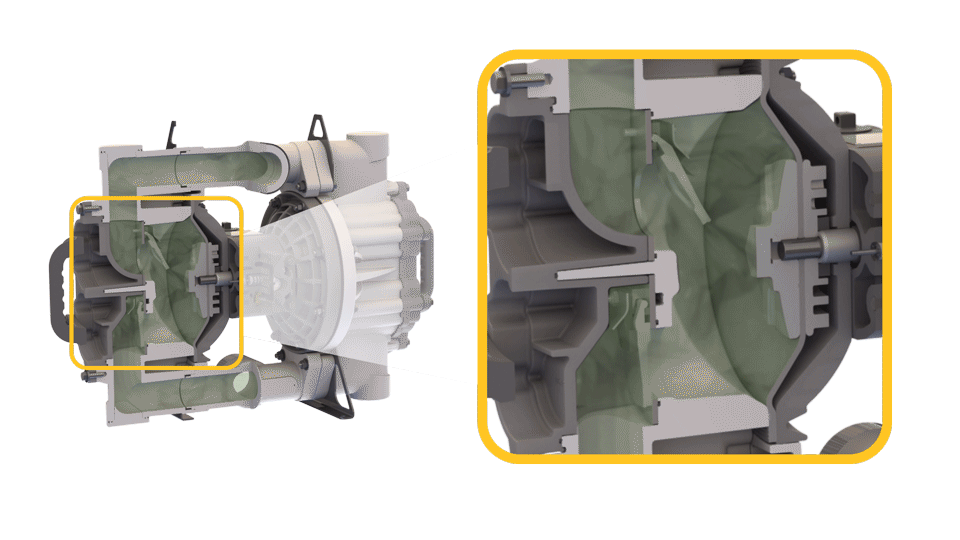

This plastic solids handling AODD pump is also configured to provide a longer service life with diaphragm wear pads. This unit features a top suction, bottom discharge design, working with gravity, that prevents particulates from settling inside its inner chambers. This robust pump also boasts durable mounting feet, lifting handles and hanging points, making it a perfect solution for numerous applications.

PLASTIC FLAP VALVE PUMP FEATURES

Solids handling: Capable of passing entrained solids up to 1.8” (45.7mm)
Lightweight and durable: At 58 lbs (27 kg), the robust yet lightweight design makes it easily portable.
Easy access to flap valves: They can be quickly cleaned or replaced without removing the pump from service.
Best-in-class air consumption: Less than 65 SCFM (110 M3/hr) at max pump flow reduces your annual compressed-air costs.
Strong manifold connections: Optional flanged or threaded connections add additional flexibility; stainless steel reinforcing rings help protect the threaded manifold connections from being damaged.

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.

PUMP RESOURCES

SPECIFICATIONS

Port Size
2" NPT (Internal)
2" BSP (Tapered)
2" ANSI
2" DIN Flange

Capacity
0 to 170 gpm (644 lpm)

Air Distribution Valve
No-lube, no-stall design

Solids-Handling
Up to 1.8" (46 mm)

Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)

Displacement/Stroke
.50 gallons (1.9 liters)

Max Operating Pressure
100 psi (7 bar)

Shipping Weight
Pump: 58 lbs (27 kg)
Shipping: 70 lbs (31.7 kg)

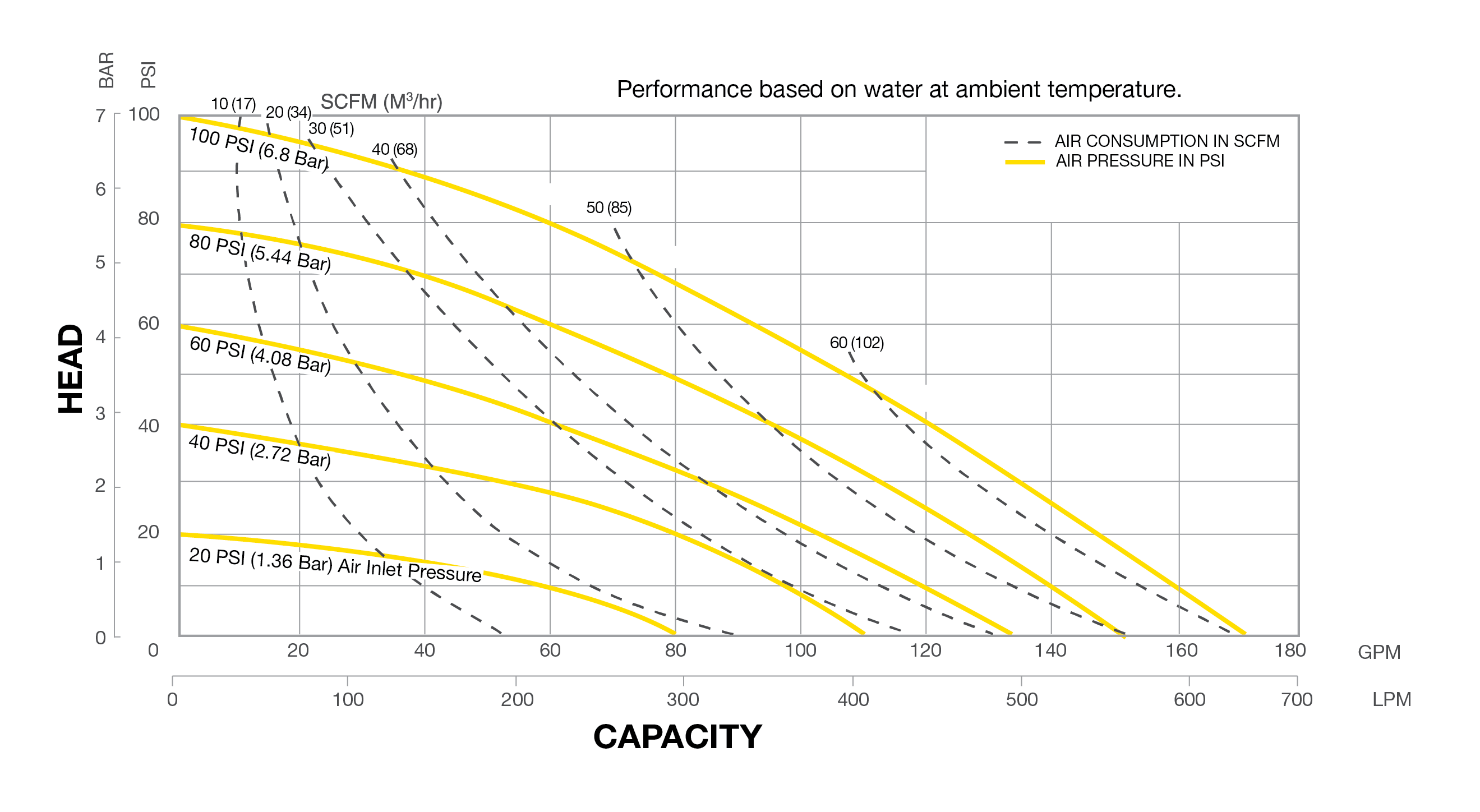

PERFORMANCE CHART

LITERATURE

VIDEOS

Versamatic: How AODD Pumps Work

REQUEST INFORMATION

AODD PUMP PARTS & ACCESSORIES

FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.
