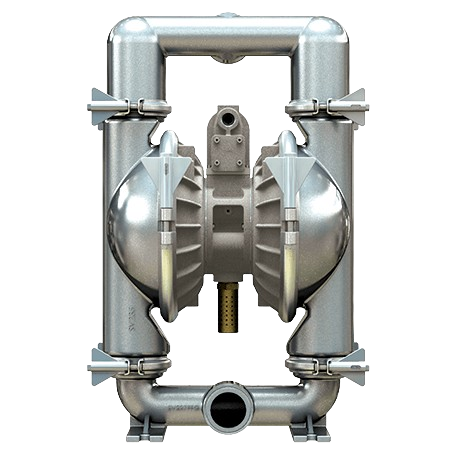

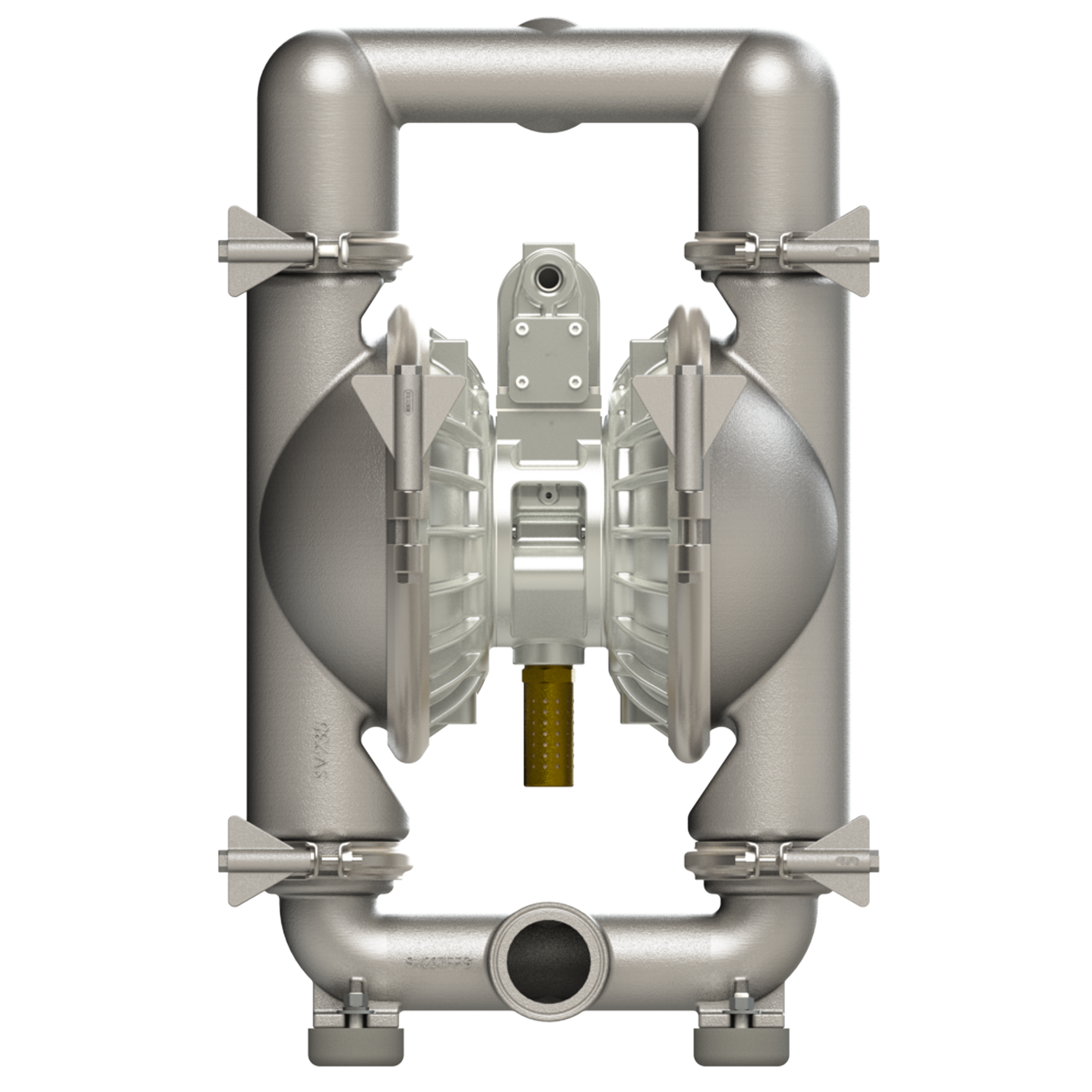

Versamatic’s 2" (51mm) clamped stainless steel food processing pump is constructed utilizing FDA-compliant materials for specialty applications. A Versamatic best-selling pump, the classic clamped assembly of this air-operated double-diaphragm (AODD) pump offers portability and has a maximum flow rate of 185 gpm (700 lpm). Additionally, it is easy to maintain, offering rapid teardown for service and cleaning. This food-grade transfer pump is also ATEX-compliant.

FDA Diaphragm Pump Features

  • Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ-in (Ra 3.81 µ-m) internally and externally
  • Extended-life diaphragm: Available with an integrated plate PTFE diaphragm
  • Hygienic wing nuts: For easy assembly
  • Chemical-resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
  • Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
  • Tri-clamped connections: For quick disassembly, easy sanitization and reassembly
  • Clamped constructions: Quick teardown and reassembly

Check out our interactive chemical guide if you’re not sure if your chemicals are compatible with this pump.

FDACompliantLogo_black_OL EC1935_GobletFork ATEX CE logo EAC

REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-185 gpm (700 lpm)
  • Port Size
  • Suction: 2 ½" Tri-Clamp
  • Discharge: 2 ½" Tri-Clamp
  • Air Inlet
  • ½" NPT
  • Air Exhaust
  • 1" NPT
  • Suction Lift
  • 17' (5.1 m)
  • 32' (9.5 m)
  • Max Solid Size (Diameter)
  • ¼" (7.6 mm)
  • Max Noise Level
  • 96 dB(A)
  • Shipping Weight
  • Stainless: 106 lbs (48.1 kg)

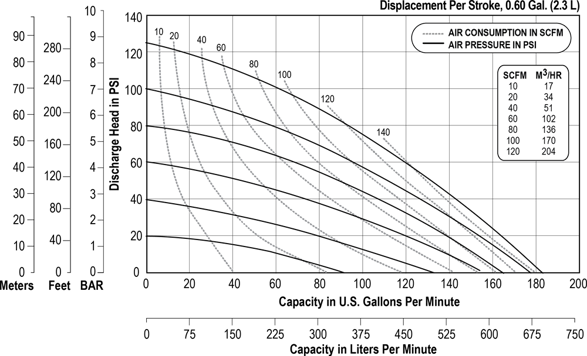

PERFORMANCE CHART
2-Clamped-Metal-FDA-Performance
Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTERREGULATOR
FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID-LEVEL CONTROL
LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE-SUPPRESSOR
SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.

VIEW ALL PARTS & ACCESSORIES

Is this the right pump for your pumping operation? Use our Pump Selection Tool to be sure.

Find the Right Pump For You
