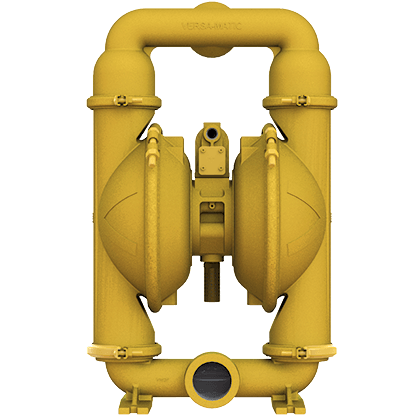

Versamatic’s 3" (76mm) ATEX diaphragm pump features a simple clamped assembly designed for proven performance, delivering high flow rates and excellent solids and slurries handling. This air-operated double-diaphragm (AODD) pump can effectively handle a broad array of fluid types in a wide range of applications.

Additionally, the 3" ATEX-certified AODD pump is suited for use in potentially hazardous environments, including those containing chemicals, oil and gas. Versamatic delivers the safety of ATEX compliance in the pump styles and materials the world demands.

ATEX Diaphragm Pump Safety Benefits

  • Fully groundable
  • No isolated metallic hardware components
  • Electrically conductive materials of construction
  • Electrostatic discharges are dissipated in a continual current path throughout the pump to a natural ground

ATEX

Looking for your nearest Versamatic supplier? Find a Distributor.

Not sure if this is the right pump? Try our Pump Selector Tool.

PLEASE NOTE: PRICING IS ONLY AVAILABLE THROUGH DISTRIBUTORS.



REQUEST INFORMATION

Please note, we are unable to provide pricing information, but are happy connect you with one of our authorized distributors.

PUMP RESOURCES

SPECIFICATIONS
  • Flow Rate
  • 0-234 gpm (886 lpm)
  • Port Size
  • Suction: 3" NPT (BSP)
  • Discharge: 3" NPT (BSP)
  • Air Inlet
  • ½" NPT
  • Air Exhaust
  • 1" NPT
  • Suction Lift
  • Dry: 20' (6.1 m)
  • Wet: 32' (9.8 m)
  • Max Solid Size (Diameter)
  • ⅜" (9.5 mm)
  • Max Noise Level
  • 96 dB(A)
  • Shipping Weight
  • Aluminum: 108 lbs (49.0 kg)
  • Cast Iron: 205 lbs (93 kg)
  • Stainless: 183 lbs (83 kg)
  • ** Stainless Center add: 50 lbs (22.7 kg)

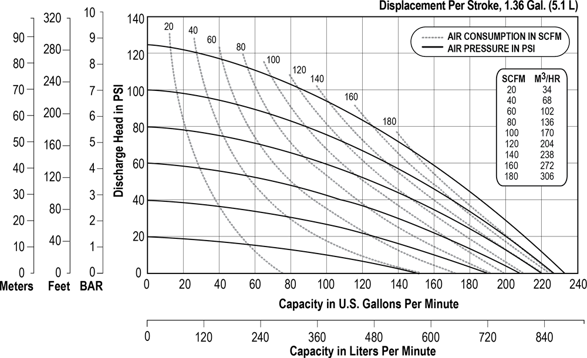

PERFORMANCE CHART
3
Find a Distributor

AODD PUMP PARTS & ACCESSORIES

FILTERREGULATOR
FILTER / REGULATOR

These reliable air filters/regulators have been specifically developed for AODD pumps to reduce maintenance and lower operating costs.

LIQUID-LEVEL CONTROL
LIQUID LEVEL CONTROL

These float-actuated liquid level controllers are operated entirely by mechanical and pneumatic means, porting air through a special regulator to start or stop AODD pumps.

SURGE-SUPPRESSOR
SURGE SUPPRESSOR

Protect your piping, valving and instrumentation by decreasing pulsation and vibration with Versamatic's surge suppressors.

VIEW ALL PARTS & ACCESSORIES
