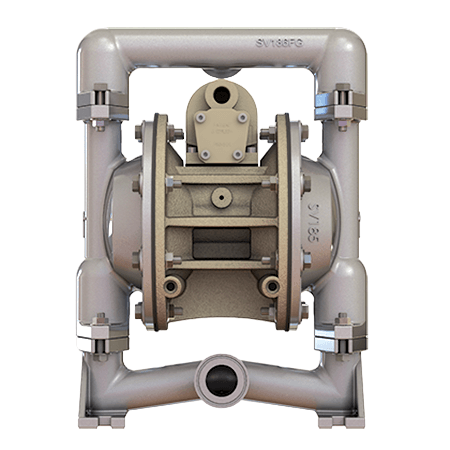

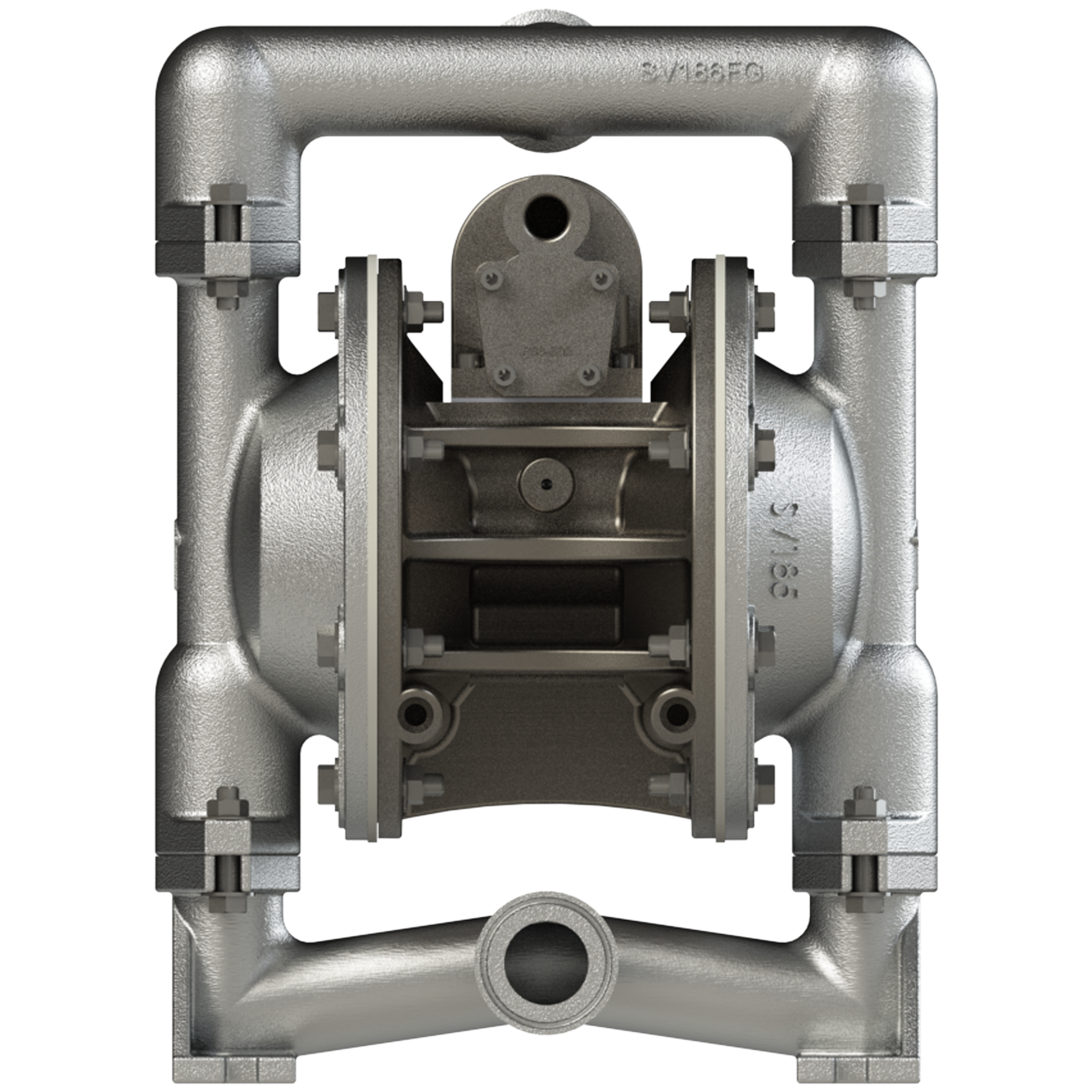

1" (25MM) BOLTED METAL FOOD PROCESSING PUMP

Versamatic’s 1" (25mm) specialty FDA diaphragm pump utilizes a patented air valve system to deliver consistent on/off reliability while maintaining superior efficiency. The 1" food-grade transfer pump is built with FDA-compliant materials so that it can be specified in applications requiring FDA compliance.

This air-operated double-diaphragm (AODD) pump is available in stainless steel.

Applications

  • Filling lines
  • Blending/mixing
  • Ingredient injection
  • Product transfer/tank over

This food processing pump is also ATEX-compliant.

FDA Diaphragm Pump Features

  • Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ-in (Ra 3.81 µ-m) internally and externally
  • Extended-life diaphragm: Available with an integrated plate PTFE diaphragm
  • Chemical-resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
  • Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
  • Tri-clamped connections: For quick disassembly, easy sanitization and reassembly

Not sure if what you’re pumping is compatible with this AODD pump? Check out our interactive chemical compatibility guide.

Order this Pump

FDACompliantLogo_black_OL EC1935_GobletFork ATEX CE logo EAC

SPECIFICATIONS

Flow Rate 0-49 gpm (185.5 lpm)
Port Size
Suction
Discharge

1 ½" TRI-CLAMP
1 ½" TRI-CLAMP
Air Inlet ⅜" NPT
Air Exhaust ½" NPT
Suction Lift
Dry
Wet

16' (3.1 m)
31' (9.4 m)
Max Solid Size (Diameter) ⅛" (3.1 cm)
Max Noise Level 93 dB(A)

Shipping Weight
Stainless Steel


36 lbs (16.3 kg)

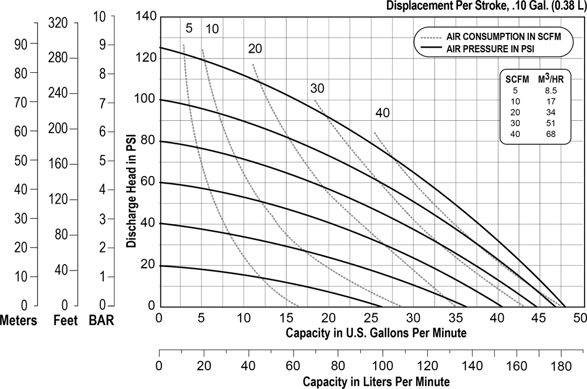

PERFORMANCE CHART

1-Bolted-Metal-FDA-Performance
